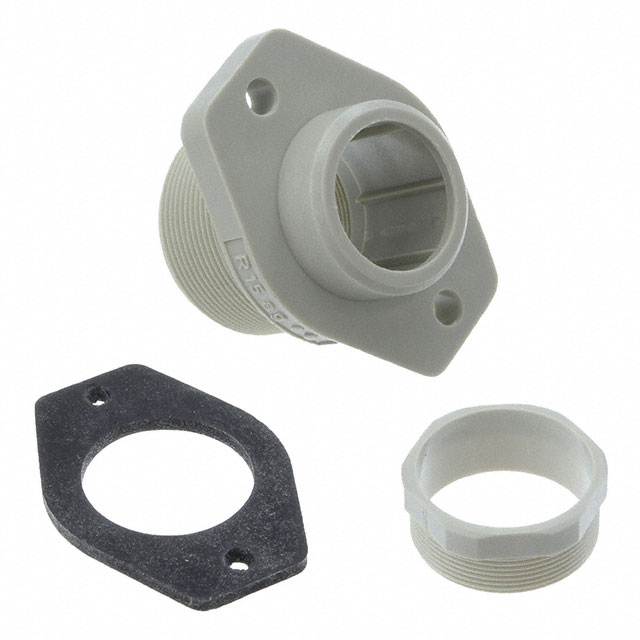

09150000301
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09150000301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09150000301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09150000301 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN INSERT SHELL PANEL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $7.258 | $6.738 | $6.046 | $5.874 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $5.183 | $4.837 | $4.733 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09150000301 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN INSERT SHELL PANEL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6855 pcs | Data sheet | 09150000301 Drawing |
| Category | Connectors, Interconnects | Type | - |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Thermoplastic |
| Shell Finish | - | Series | R 15 |
| Packaging | Bulk | Other Names | 09150000301-ND 1195-7482 |
| Orientation | - | Operating Temperature | -40°C ~ 125°C |
| Number of Positions | - | Note | Contacts Not Included; Insert Not Included |
| Mounting Type | Panel Mount | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 6 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insert Material | - | Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Includes | - | Housing Color | Gray |
| Features | - | Fastening Type | Threaded |
| Detailed Description | Circular Connector Insert Shell Panel Mount | Coupling Nut Material, Plating | - |
| Coupling Nut Diameter | - | Contact Type | - |
| Contact Size | - | Contact Shape | - |
| Connector Type | Insert Shell |
