09120080901

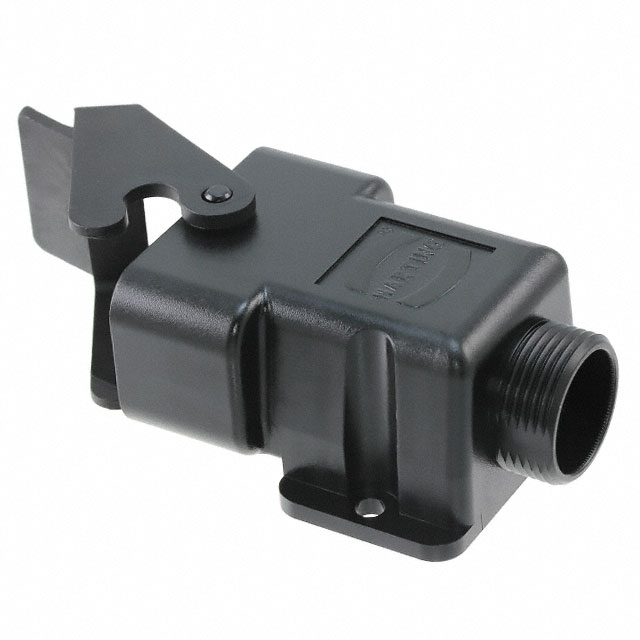

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09120080901 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09120080901 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09120080901 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN BASE SIDE ENTRY PG16 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.756 | $5.345 | $4.797 | $4.66 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.111 | $3.837 | $3.755 | $3.563 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09120080901 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN BASE SIDE ENTRY PG16 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9482 pcs | Data sheet | 09120080901 Drawing |
| Category | Connectors, Interconnects | Thread Size | PG16 |
| Style | Side Entry | Size / Dimension | 1.807" L x 1.181" W x 1.299" H (45.90mm x 30.00mm x 33.00mm) |
| Size | - | Series | Han-Compact® |
| Packaging | Bulk | Other Names | 09120080901-ND 1195-5730 |
| Operating Temperature | -40°C ~ 125°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lock Location | Locking Clip (1) on Base Bottom |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP65/67 - Dust Tight, Water Resistant, Waterproof |
| Housing Material | Thermoplastic | Housing Finish | - |
| Housing Color | Black | Features | - |
| Connector Type | Base - Panel Mount 90° |
