09120080301

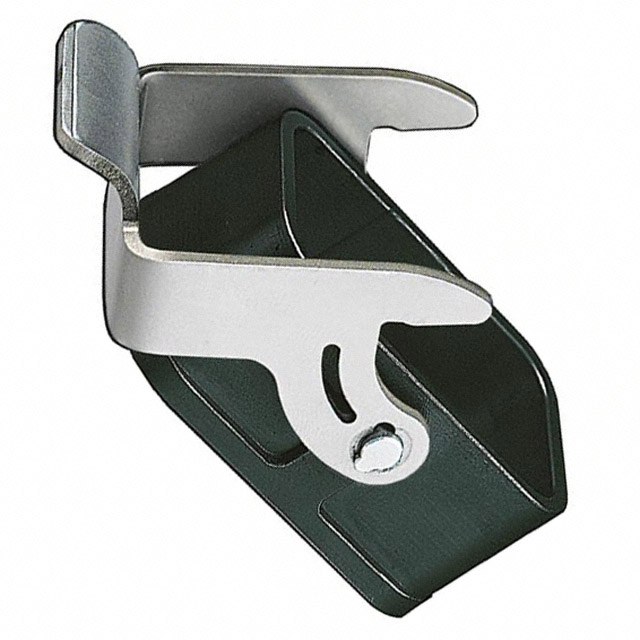

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 09120080301 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 09120080301 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 09120080301 |
|---|---|
| Manufacturer | HARTING |
| Description | CONN BASE BOTTOM ENTRY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.677 | $5.16 | $5.031 | $4.644 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.386 | $3.999 | $3.741 | $3.431 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 09120080301 | Manufacturer | HARTING |
|---|---|---|---|
| Description | CONN BASE BOTTOM ENTRY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 10738 pcs | Data sheet | 09120080301 Drawing |
| Category | Connectors, Interconnects | Thread Size | - |
| Style | Bottom Entry | Size / Dimension | 1.807" L x 1.142" W x 0.728" H (45.90mm x 29.00mm x 18.50mm) |
| Size | - | Series | Han-Compact® |
| Packaging | Bulk | Other Names | 1195-1370 9120080301 |
| Operating Temperature | -40°C ~ 125°C | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 6 Weeks | Lock Location | Locking Clip (1) on Base Bottom |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Housing Material | Zinc, Die Cast | Housing Finish | Chromate |
| Housing Color | Black | Features | - |
| Connector Type | Base - Panel Mount |
