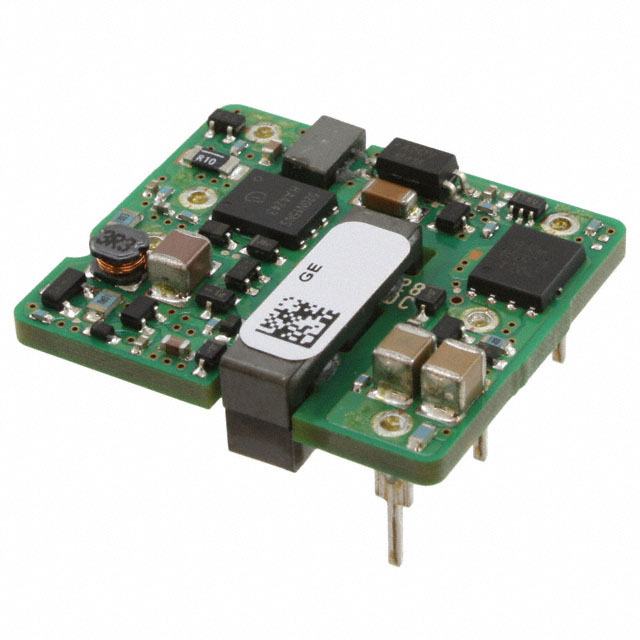

SHHD005A0F41Z
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SHHD005A0F41Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SHHD005A0F41Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SHHD005A0F41Z |
|---|---|
| Manufacturer | GE Critical Power |
| Description | DC DC CONVERTER 3.3V 15W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $6.828 | $6.775 | $6.722 | $6.617 | ||
| 75 pcs | 150 pcs | 300 pcs | 525 pcs | ||
| $6.302 | $5.777 | $5.672 | $5.588 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SHHD005A0F41Z | Manufacturer | GE Critical Power |
|---|---|---|---|
| Description | DC DC CONVERTER 3.3V 15W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6172 pcs | Data sheet | SHHD005A0F Series |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 3.3V |
| Voltage - Isolation | 2.25kV | Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V | Type | Isolated Module |
| Size / Dimension | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | Series | Hammerhead™ SHHD005A0F |
| Power (Watts) | 15W | Packaging | Tray |
| Package / Case | 6-DIP Module | Other Names | 109172920 555-1314 CC109172920 |
| Operating Temperature | -40°C ~ 85°C | Number of Outputs | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | Efficiency | 87.5% |
| Detailed Description | Isolated Module DC DC Converter 1 Output 3.3V 5A 18V - 75V Input | Current - Output (Max) | 5A |
| Control Features | Enable, Active Low | Applications | ITE (Commercial) |
