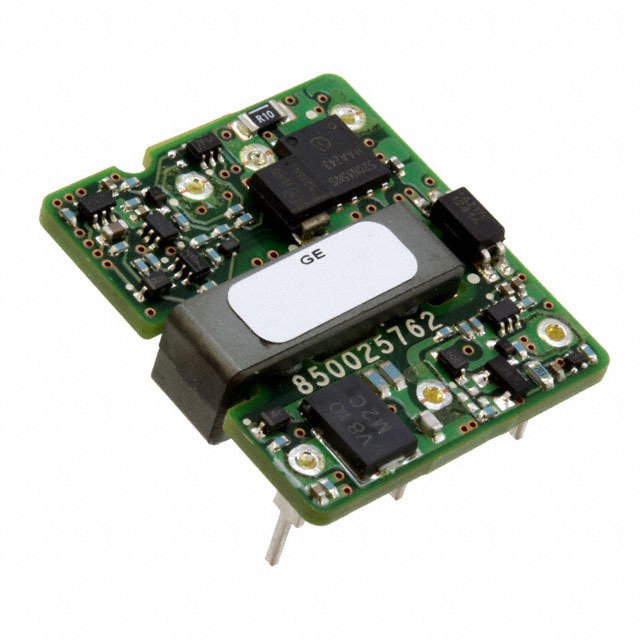

SHHD001A3B41Z
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SHHD001A3B41Z with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SHHD001A3B41Z with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SHHD001A3B41Z |
|---|---|
| Manufacturer | GE Critical Power |
| Description | DC DC CONVERTER 12V 15W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | |
|---|---|---|---|---|---|
| $6.771 | $6.718 | $6.665 | $6.561 | ||
| 75 pcs | 150 pcs | 300 pcs | 525 pcs | ||
| $6.249 | $5.728 | $5.624 | $5.541 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SHHD001A3B41Z | Manufacturer | GE Critical Power |
|---|---|---|---|
| Description | DC DC CONVERTER 12V 15W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5466 pcs | Data sheet | SHHD001A3B Series |
| Category | Power Supplies - Board Mount | Voltage - Output 3 | - |
| Voltage - Output 2 | - | Voltage - Output 1 | 12V |
| Voltage - Isolation | 2.25kV | Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V | Type | Isolated Module |
| Size / Dimension | 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.5mm) | Series | Hammerhead™ SHHD001A3B |
| Power (Watts) | 15W | Packaging | Tray |
| Package / Case | 6-DIP Module | Other Names | 109172937 555-1310 CC109172937 |
| Operating Temperature | -40°C ~ 85°C | Number of Outputs | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | Efficiency | 87.5% |
| Detailed Description | Isolated Module DC DC Converter 1 Output 12V 1.3A 18V - 75V Input | Current - Output (Max) | 1.3A |
| Control Features | Enable, Active Low | Applications | ITE (Commercial) |
