Home > Products > Power Supplies - External/Internal (Off-Board) > LED Drivers > LDB75-048SW

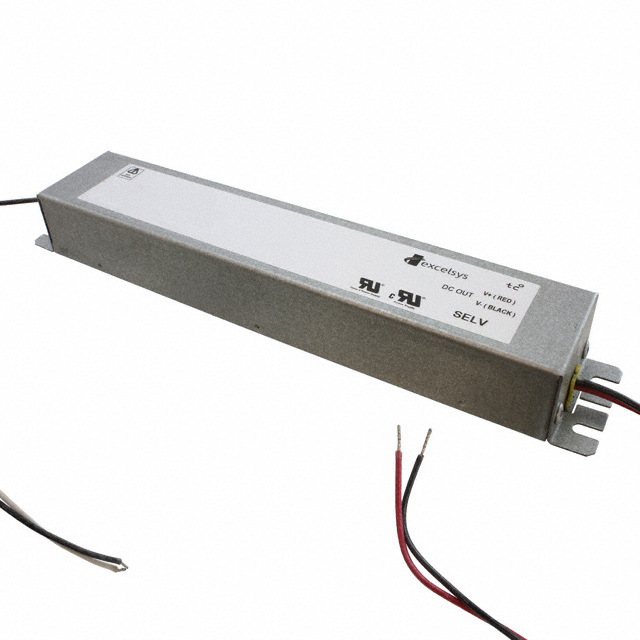

LDB75-048SW

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy LDB75-048SW with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	LDB75-048SW
Manufacturer	Excelsys Technologies Ltd.
Description	LED DVR CC/CV AC/DC 24-48V 1.56A
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 4720 pcs
Reference Price (In US Dollars)	Get a quote

Product parameter
Data sheet

Product parameter

Part Number	LDB75-048SW	Manufacturer	Excelsys Technologies Ltd.
Description	LED DVR CC/CV AC/DC 24-48V 1.56A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4720 pcs	Data sheet	LDB75
Category	Power Supplies - External/Internal (Off-Board)	Weight	1.5 lbs (680.4g)
Voltage - Output	24 ~ 48 V	Voltage - Isolation	3.75kV
Voltage - Input (Min)	90VAC	Voltage - Input (Max)	305VAC
Type	Constant Current, Voltage	Topology	AC DC Converter
Termination Style	Wire Leads	Size / Dimension	9.09" L x 1.57" W x 1.12" H (231.0mm x 40.0mm x 28.4mm)
Series	LDB75	Ratings	IP67
Power (Watts)	75W	Other Names	633-1211 LDB75048SW
Operating Temperature	-30°C ~ 70°C	Number of Outputs	1
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	OCP, OTP, OVP, SCP
Efficiency	91%	Dimming	-
Detailed Description	1.56A 24 ~ 48 V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output	Current - Output (Max)	1.56A
Approvals	CE, CSA, cULus, EN
