Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > XR77103EVB-A1R0

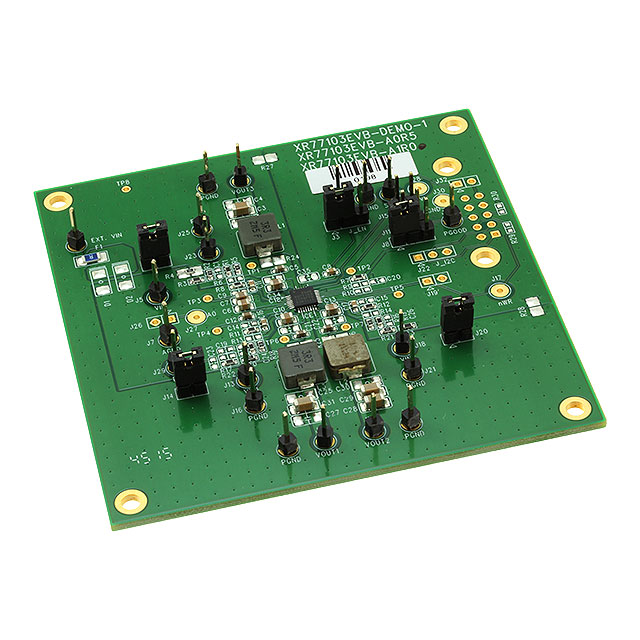

XR77103EVB-A1R0

XR77103EVB-A1R0

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XR77103EVB-A1R0 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	XR77103EVB-A1R0
Manufacturer	Exar Corporation
Description	EVAL BOARD FOR XR77103-A1R0
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 2335 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$15.183

Product parameter
Data sheet

Product parameter

Part Number	XR77103EVB-A1R0	Manufacturer	Exar Corporation
Description	EVAL BOARD FOR XR77103-A1R0	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	2335 pcs	Data sheet	XR77103-A1R0
Category	Development Boards, Kits, Programmers	Voltage - Output	0.8 V ~ 6 V
Voltage - Input	4.5 V ~ 14 V	Utilized IC / Part	XR77103-A1R0
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	3, Non-Isolated
Other Names	1016-2125	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Main Purpose	DC/DC, Step Down
Lead Free Status / RoHS Status	Not applicable / Not applicable	Frequency - Switching	1MHz
Detailed Description	XR77103-A1R0 - DC/DC, Step Down 3, Non-Isolated Outputs Evaluation Board	Current - Output	2A, 2A, 2A
Board Type	Fully Populated
