Home > Products > Development Boards, Kits, Programmers > Evaluation Boards - DC/DC & AC/DC (Off-Line) S > XR76208EVB-Q

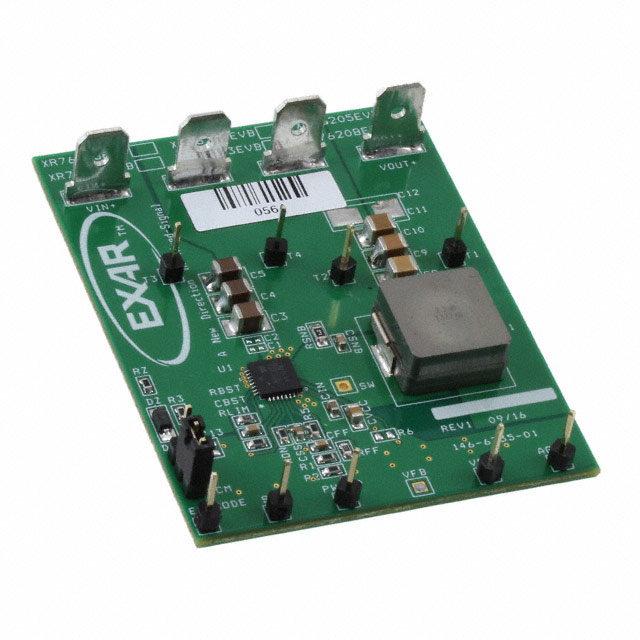

XR76208EVB-Q

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy XR76208EVB-Q with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	XR76208EVB-Q
Manufacturer	Exar Corporation
Description	EVAL BOARD FOR XR76208
Lead Free Status / RoHS Status	Not applicable / Not applicable

~~In Stock~~ 3375 pcs
Reference Price (In US Dollars)	1 pcs
Reference Price (In US Dollars)	$9.257

Product parameter
Data sheet

Product parameter

Part Number	XR76208EVB-Q	Manufacturer	Exar Corporation
Description	EVAL BOARD FOR XR76208	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	3375 pcs	Data sheet	XR7620x-Q Datasheet Power Management Brochure XR7620x-Q Flyer
Category	Development Boards, Kits, Programmers	Voltage - Output	-
Voltage - Input	5.5 V ~ 40 V	Utilized IC / Part	XR76208-Q
Supplied Contents	Board(s)	Series	-
Regulator Topology	Buck	Outputs and Type	1, Non-Isolated
Other Names	1016-2192	Manufacturer Standard Lead Time	8 Weeks
Main Purpose	DC/DC, Step Down	Lead Free Status / RoHS Status	Not applicable / Not applicable
Frequency - Switching	-	Detailed Description	XR76208-Q - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Current - Output	8A	Board Type	Fully Populated
