Home > Products > Discrete Semiconductor Products > Transistors - IGBTs - Modules > VS-GA250SA60S

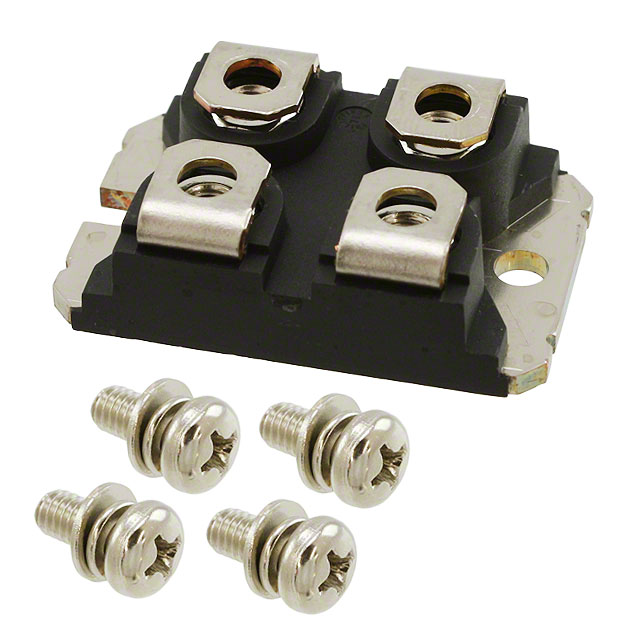

VS-GA250SA60S

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-GA250SA60S with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-GA250SA60S
Manufacturer	Electro-Films (EFI) / Vishay
Description	IGBT 600V 400A SOT227
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 1466 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	30 pcs	100 pcs
Reference Price (In US Dollars)	$29.802	$28.311	$27.566	$25.517

Product parameter
Data sheet

Product parameter

Part Number	VS-GA250SA60S	Manufacturer	Electro-Films (EFI) / Vishay
Description	IGBT 600V 400A SOT227	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1466 pcs	Data sheet	VS-GA250SA60S
Category	Discrete Semiconductor Products	Voltage - Collector Emitter Breakdown (Max)	600V
Vce(on) (Max) @ Vge, Ic	1.66V @ 15V, 200A	Supplier Device Package	SOT-227
Series	-	Power - Max	961W
Package / Case	SOT-227-4	Other Names	VS-GA250SA60SGI VSGA250SA60S
Operating Temperature	-40°C ~ 150°C (TJ)	NTC Thermistor	No
Mounting Type	Chassis Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	29 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Cies) @ Vce	16.25nF @ 30V	Input	Standard
IGBT Type	-	Detailed Description	IGBT Module Single 600V 400A 961W Chassis Mount SOT-227
Current - Collector Cutoff (Max)	1mA	Current - Collector (Ic) (Max)	400A
Configuration	Single
