Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > VS-12F60

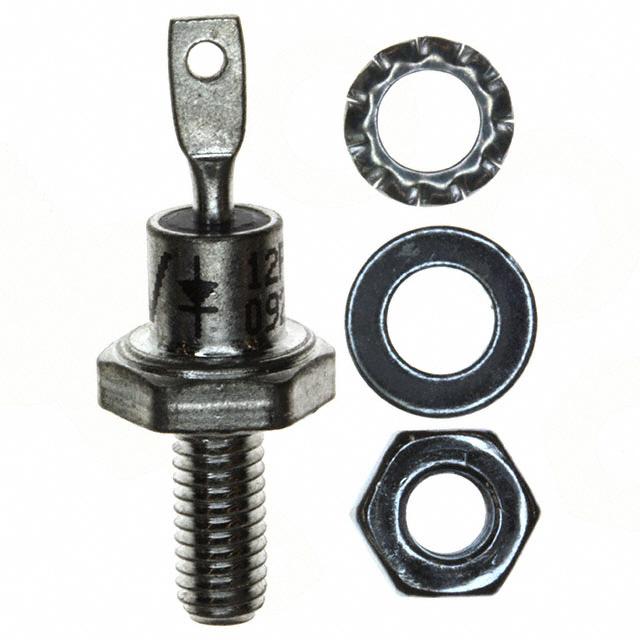

VS-12F60

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-12F60 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-12F60
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 600V 12A DO203AA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 34815 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$2.051	$1.842	$1.509	$1.285	$1.084

Product parameter
Data sheet

Product parameter

Part Number	VS-12F60	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 600V 12A DO203AA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34815 pcs	Data sheet	12F(R) Series
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.26V @ 38A
Voltage - DC Reverse (Vr) (Max)	600V	Supplier Device Package	DO-203AA
Speed	Standard Recovery >500ns, > 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	DO-203AA, DO-4, Stud
Other Names	*12F60 12F60 VS-12F60-ND VS12F60 VS12F60-ND	Operating Temperature - Junction	-65°C ~ 175°C
Mounting Type	Chassis, Stud Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Detailed Description	Diode Standard 600V 12A Chassis, Stud Mount DO-203AA
Current - Reverse Leakage @ Vr	12mA @ 600V	Current - Average Rectified (Io)	12A
Capacitance @ Vr, F	-	Base Part Number	12F60
