Home > Products > Discrete Semiconductor Products > Diodes - Rectifiers - Single > VS-12F100

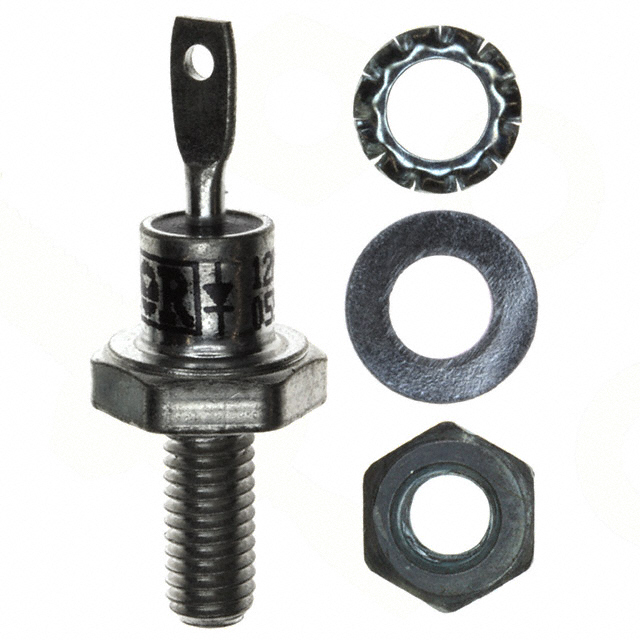

VS-12F100

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy VS-12F100 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	VS-12F100
Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 1KV 12A DO203AA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 21756 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$2.719	$2.455	$2.032	$1.77	$1.541

Product parameter
Data sheet

Product parameter

Part Number	VS-12F100	Manufacturer	Electro-Films (EFI) / Vishay
Description	DIODE GEN PURP 1KV 12A DO203AA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21756 pcs	Data sheet	12F(R) Series
Category	Discrete Semiconductor Products	Voltage - Forward (Vf) (Max) @ If	1.26V @ 38A
Voltage - DC Reverse (Vr) (Max)	1000V	Supplier Device Package	DO-203AA
Speed	Standard Recovery >500ns, > 200mA (Io)	Series	-
Packaging	Bulk	Package / Case	DO-203AA, DO-4, Stud
Other Names	*12F100 12F100 VS-12F100-ND VS12F100 VS12F100-ND	Operating Temperature - Junction	-65°C ~ 175°C
Mounting Type	Chassis, Stud Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Diode Type	Standard	Detailed Description	Diode Standard 1000V 12A Chassis, Stud Mount DO-203AA
Current - Reverse Leakage @ Vr	12mA @ 1000V	Current - Average Rectified (Io)	12A
Capacitance @ Vr, F	-	Base Part Number	12F100
