SIUD403ED-T1-GE3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SIUD403ED-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SIUD403ED-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SIUD403ED-T1-GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET P-CH 20V 500MA PWRPAK0806 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.025 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SIUD403ED-T1-GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET P-CH 20V 500MA PWRPAK0806 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1006046 pcs | Data sheet | SIUD403ED |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 900mV @ 250µA |
| Vgs (Max) | ±8V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerPAK® 0806 | Series | TrenchFET® Gen III |
| Rds On (Max) @ Id, Vgs | 1.25 Ohm @ 300mA, 4.5V | Power Dissipation (Max) | 1.25W (Ta) |
| Packaging | Tape & Reel (TR) | Package / Case | PowerPAK® 0806 |
| Other Names | SIUD403ED-T1-GE3TR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 31pF @ 10V |
| Gate Charge (Qg) (Max) @ Vgs | 1nC @ 4.5V | FET Type | P-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Drain to Source Voltage (Vdss) | 20V | Detailed Description | P-Channel 20V 500mA (Ta) 1.25W (Ta) Surface Mount PowerPAK® 0806 |
| Current - Continuous Drain (Id) @ 25°C | 500mA (Ta) |
- Related products
- Related news
Related products
- Part#:

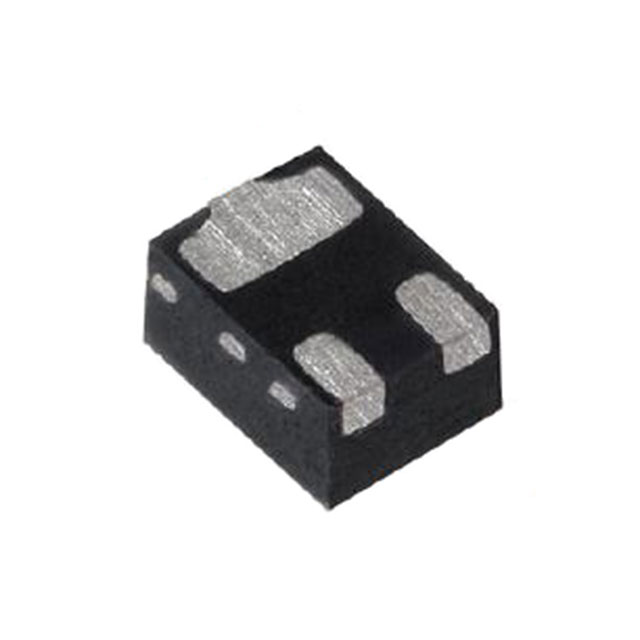

SIUD412ED-T1-GE3 - Manufacturers:
