STU60N3LH5

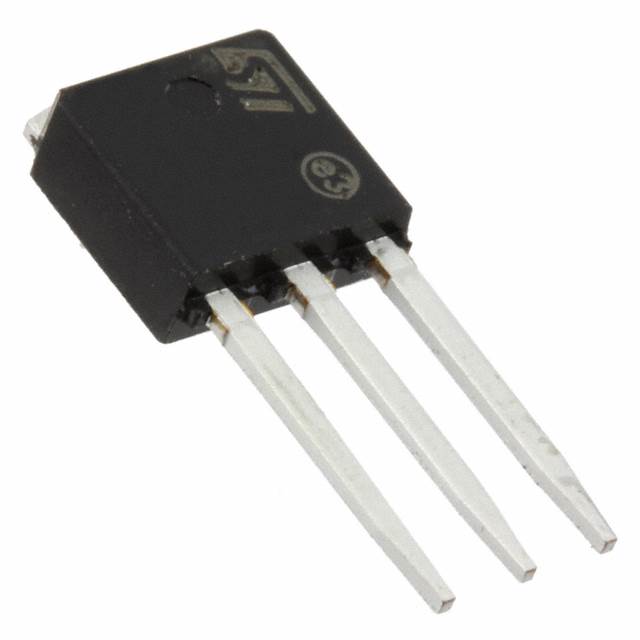

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy STU60N3LH5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy STU60N3LH5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | STU60N3LH5 |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | MOSFET N-CH 30V 48A IPAK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | STU60N3LH5 | Manufacturer | STMicroelectronics |
|---|---|---|---|
| Description | MOSFET N-CH 30V 48A IPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4159 pcs | Data sheet | STx60N3LH5 |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 3V @ 250µA |
| Vgs (Max) | ±20V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | I-PAK | Series | STripFET™ V |
| Rds On (Max) @ Id, Vgs | 8.4 mOhm @ 24A, 10V | Power Dissipation (Max) | 60W (Tc) |
| Packaging | Tube | Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
| Other Names | 497-12697-5 STU60N3LH5-ND |
Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 1620pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs | 8.8nC @ 5V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Drain to Source Voltage (Vdss) | 30V | Detailed Description | N-Channel 30V 48A (Tc) 60W (Tc) Through Hole I-PAK |
| Current - Continuous Drain (Id) @ 25°C | 48A (Tc) |
