SISC06DN-T1-GE3

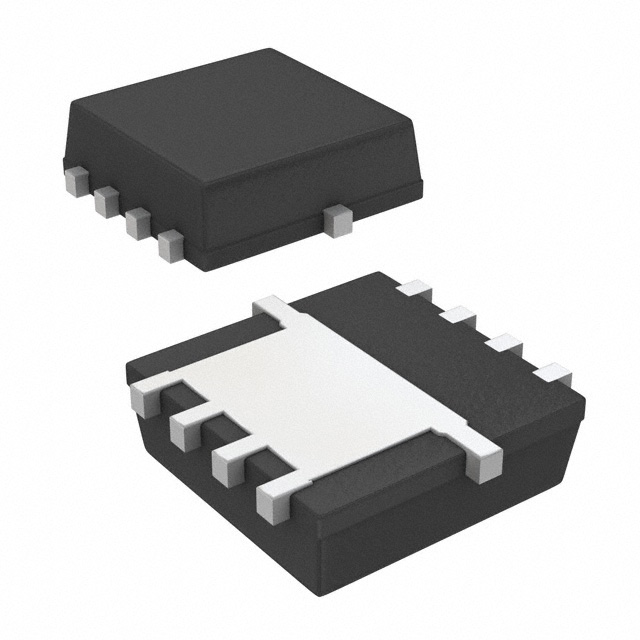

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SISC06DN-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SISC06DN-T1-GE3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SISC06DN-T1-GE3 |
|---|---|
| Manufacturer | Electro-Films (EFI) / Vishay |
| Description | MOSFET N-CH 30V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | ||||
|---|---|---|---|---|---|
| $0.156 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | SISC06DN-T1-GE3 | Manufacturer | Electro-Films (EFI) / Vishay |
|---|---|---|---|
| Description | MOSFET N-CH 30V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 153279 pcs | Data sheet | SISC06DN |
| Category | Discrete Semiconductor Products | Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Vgs (Max) | +20V, -16V | Technology | MOSFET (Metal Oxide) |
| Supplier Device Package | PowerPAK® 1212-8 | Series | TrenchFET® Gen IV |
| Rds On (Max) @ Id, Vgs | 2.7 mOhm @ 15A, 10V | Power Dissipation (Max) | 3.7W (Ta), 46.3W (Tc) |
| Packaging | Tape & Reel (TR) | Package / Case | PowerPAK® 1212-8 |
| Other Names | SISC06DN-T1-GE3TR | Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 32 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 2455pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 58nC @ 10V |
| FET Type | N-Channel | FET Feature | Schottky Diode (Isolated) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 27.6A (Ta), 40A (Tc) 3.7W (Ta), 46.3W (Tc) Surface Mount PowerPAK® 1212-8 | Current - Continuous Drain (Id) @ 25°C | 27.6A (Ta), 40A (Tc) |
