Home > Products > Inductors, Coils, Chokes > Fixed Inductors > B82559A3292A025

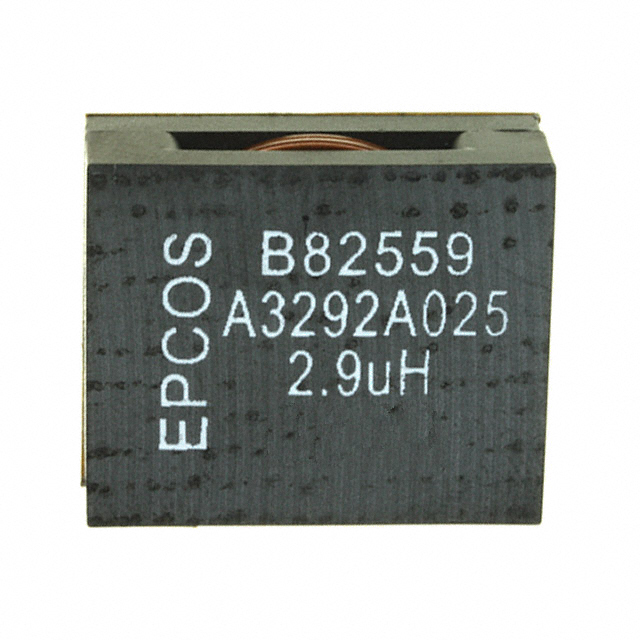

B82559A3292A025

B82559A3292A025

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82559A3292A025 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B82559A3292A025
Manufacturer	EPCOS
Description	FIXED IND 2.9UH 33A 1 MOHM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 19347 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	280 pcs	560 pcs	1120 pcs
Reference Price (In US Dollars)	$3.273	$2.946	$2.029	$1.964	$1.833

Product parameter
Data sheet

Product parameter

Part Number	B82559A3292A025	Manufacturer	EPCOS
Description	FIXED IND 2.9UH 33A 1 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	19347 pcs	Data sheet	B82559xA025 Series Datasheet B82559A3292A025 Datasheet
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±7%	Supplier Device Package	-
Size / Dimension	0.996" L x 0.925" W (25.30mm x 23.50mm)	Shielding	Shielded
Series	ERU25	Ratings	-
Q @ Freq	-	Packaging	Tray
Package / Case	Nonstandard	Other Names	495-3455 495-3455-1 495-3455-1-ND B82559A3292A 25 B82559A3292A25
Operating Temperature	-40°C ~ 130°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	Ferrite
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	10kHz	Inductance	2.9µH
Height - Seated (Max)	0.423" (10.75mm)	Frequency - Self Resonant	-
Detailed Description	2.9µH Shielded Wirewound Inductor 1 mOhm Nonstandard	DC Resistance (DCR)	1 mOhm
Current - Saturation	33A
