Home > Products > Inductors, Coils, Chokes > Fixed Inductors > B82559A2102A019

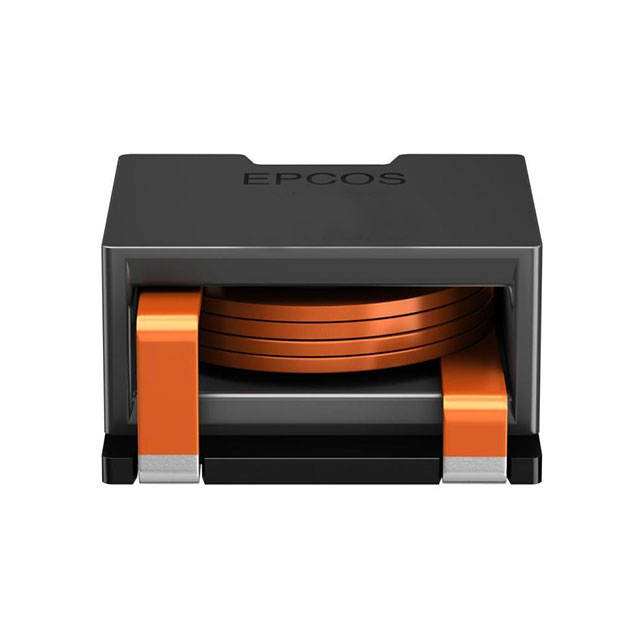

B82559A2102A019

B82559A2102A019

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82559A2102A019 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B82559A2102A019
Manufacturer	EPCOS
Description	FIXED IND 1UH 1.2 MOHM SMD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 38571 pcs
Reference Price (In US Dollars)	300 pcs	600 pcs	900 pcs	1500 pcs	3000 pcs
Reference Price (In US Dollars)	$0.983	$0.925	$0.896	$0.867	$0.838

Product parameter
Data sheet

Product parameter

Part Number	B82559A2102A019	Manufacturer	EPCOS
Description	FIXED IND 1UH 1.2 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38571 pcs	Data sheet	B82599xA019 Datasheet
Category	Inductors, Coils, Chokes	Type	Wirewound
Tolerance	±10%	Supplier Device Package	-
Size / Dimension	0.807" L x 0.807" W (20.50mm x 20.50mm)	Shielding	Shielded
Series	ERU19	Ratings	AEC-Q200
Q @ Freq	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard, 3 Lead	Other Names	495-7414-2 B82559A2102A 19 B82559A2102A19
Operating Temperature	-40°C ~ 150°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	Ferrite
Manufacturer Standard Lead Time	20 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	1µH
Height - Seated (Max)	0.358" (9.10mm)	Frequency - Self Resonant	2MHz
Detailed Description	1µH Shielded Wirewound Inductor 1.2 mOhm Max Nonstandard, 3 Lead	DC Resistance (DCR)	1.2 mOhm Max
Current - Saturation	37.5A
