B82559A0203A020

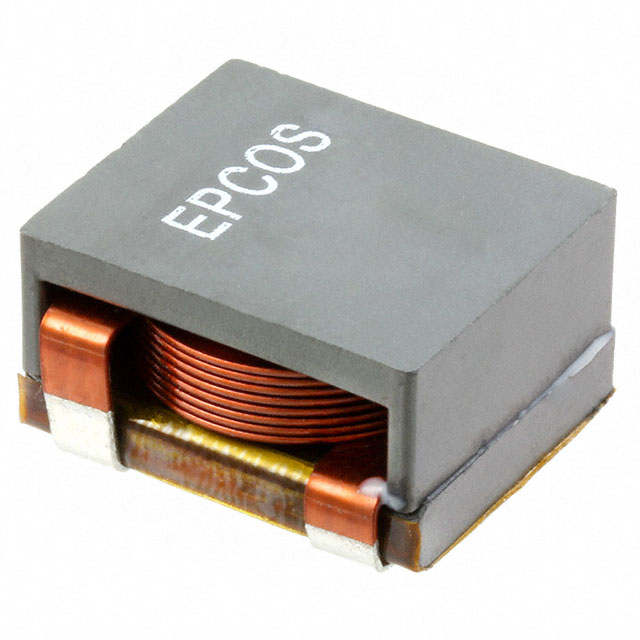

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82559A0203A020 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B82559A0203A020 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B82559A0203A020 |
|---|---|
| Manufacturer | EPCOS |
| Description | FIXED IND 20UH 6.4 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | 300 pcs | 500 pcs | 1000 pcs | 2500 pcs |
|---|---|---|---|---|---|
| $1.681 | $1.582 | $1.532 | $1.434 | $1.384 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | B82559A0203A020 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FIXED IND 20UH 6.4 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 24777 pcs | Data sheet | B82559xA020 Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.846" L x 0.827" W (21.50mm x 21.00mm) | Shielding | Shielded |
| Series | ERU20 | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 495-76065-2 B82559A 203A 20 B82559A203A20 B82559A203A20-ND |
| Operating Temperature | -40°C ~ 150°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 20µH |
| Height - Seated (Max) | 0.559" (14.20mm) | Frequency - Self Resonant | - |
| Detailed Description | 20µH Shielded Wirewound Inductor 6.4 mOhm Max Nonstandard | DC Resistance (DCR) | 6.4 mOhm Max |
| Current - Saturation | 14.3A |
