B82559A0203A016

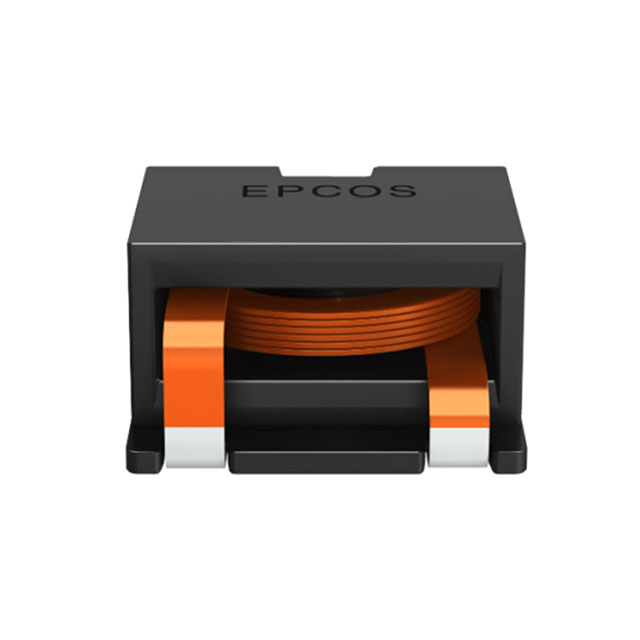

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B82559A0203A016 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B82559A0203A016 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B82559A0203A016 |
|---|---|
| Manufacturer | EPCOS |
| Description | FIXED IND 20UH 10A 13.25 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 190 pcs | 380 pcs | 570 pcs | ||
|---|---|---|---|---|---|
| $0.927 | $0.876 | $0.824 | |||
| 950 pcs | 1330 pcs | 4750 pcs | |||
| $0.798 | $0.773 | $0.747 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | B82559A0203A016 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FIXED IND 20UH 10A 13.25 MOHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 46973 pcs | Data sheet | B82559xA016 Datasheet |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 0.736" L x 0.681" W (18.70mm x 17.30mm) | Shielding | Shielded |
| Series | ERU16 | Ratings | AEC-Q200 |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard, 3 Lead | Other Names | 495-75391-2 B82559A 203A 16 |
| Operating Temperature | -40°C ~ 150°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 20µH |
| Height - Seated (Max) | 0.406" (10.30mm) | Frequency - Self Resonant | - |
| Detailed Description | 20µH Shielded Wirewound Inductor 10A 13.25 mOhm Max Nonstandard, 3 Lead | DC Resistance (DCR) | 13.25 mOhm Max |
| Current Rating | 10A | Current - Saturation | 11.3A |
