Home > Products > Magnetics - Transformer, Inductor Components > Bobbins (Coil Formers), Mounts, Hardware > B66424W1012D001

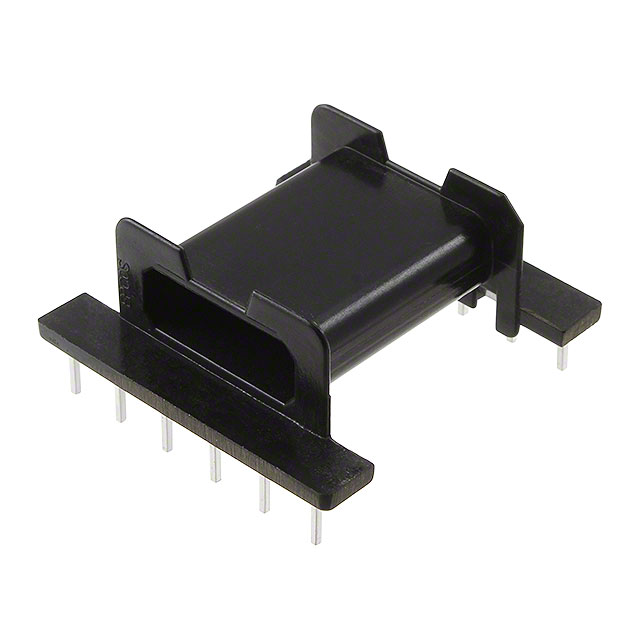

B66424W1012D001

B66424W1012D001

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B66424W1012D001 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B66424W1012D001
Manufacturer	EPCOS
Description	BOBBIN COIL FORMER EFD 30X15X9
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 80665 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.666	$0.573	$0.435	$0.412	$0.367
	$0.344	$0.321	$0.294	$0.286

Product parameter
Data sheet

Product parameter

Part Number	B66424W1012D001	Manufacturer	EPCOS
Description	BOBBIN COIL FORMER EFD 30X15X9	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	80665 pcs	Data sheet	B66423,24
Category	Magnetics - Transformer, Inductor Components	Supplier Device Package	EFD 30 x 15 x 9
Series	B66424	Other Names	495-5536 B66424W1012D 1 B66424W1012D1 B66424W1012D1-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	For Use With/Related Products	EFD
Detailed Description	Supplier Device Package EFD 30 x 15 x 9	Accessory Type	Bobbin (Coil Former), Horizontal
