Home > Products > Magnetics - Transformer, Inductor Components > Bobbins (Coil Formers), Mounts, Hardware > B66422W1010D001

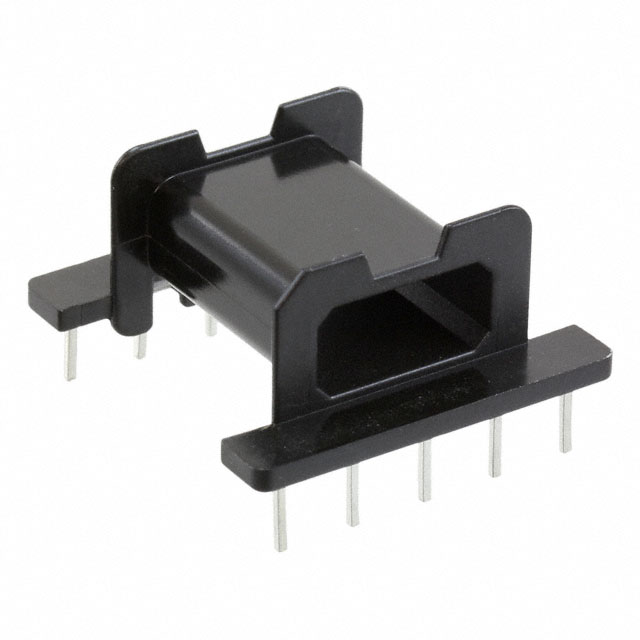

B66422W1010D001

B66422W1010D001

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B66422W1010D001 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B66422W1010D001
Manufacturer	EPCOS
Description	BOBBIN COIL FORMER EFD 25X13X9
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 78727 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.652	$0.562	$0.427	$0.404	$0.36
	$0.337	$0.315	$0.289	$0.281

Product parameter
Data sheet

Product parameter

Part Number	B66422W1010D001	Manufacturer	EPCOS
Description	BOBBIN COIL FORMER EFD 25X13X9	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	78727 pcs	Data sheet	B66421,22
Category	Magnetics - Transformer, Inductor Components	Supplier Device Package	EFD 25 x 13 x 9
Series	B66422	Other Names	495-5530 B66422W1010D 1 B66422W1010D1 B66422W1010D1-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	For Use With/Related Products	EFD
Detailed Description	Supplier Device Package EFD 25 x 13 x 9	Accessory Type	Bobbin (Coil Former), Horizontal
