B65803J0000R030

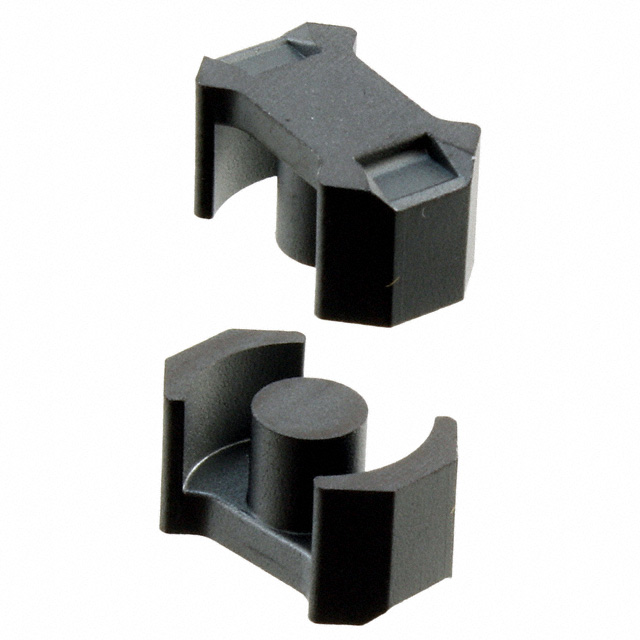

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65803J0000R030 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B65803J0000R030 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B65803J0000R030 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE RM 1.9UH N30 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.49 | $0.441 | $0.327 | $0.31 | $0.278 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.261 | $0.245 | $0.212 | $0.204 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B65803J0000R030 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE RM 1.9UH N30 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 110294 pcs | Data sheet | B65803,04,06, B65539 Series Datasheet |
| Category | Magnetics - Transformer, Inductor Components | Width | 4.60mm |
| Tolerance | -20%, +30% | Supplier Device Package | RM 4 |
| Series | B65803 | Other Names | 495-5193 B65803J R 30 B65803JR30 B65803JR30-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Minimum Core Cross Section (Amin) mm² | 11.3 |
| Material | N30 | Manufacturer Standard Lead Time | 27 Weeks |
| Length | 11.00mm | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Initial Permeability (µi) | 4300 | Inductance Factor (Al) | 1.9µH |
| Height | 5.25mm | Gap | Ungapped |
| Finish | Uncoated | Effective Permeability (µe) | 2560 |
| Effective Magnetic Volume (Ve) mm³ | 286 | Effective Length (le) mm | 22 |
| Effective Area (Ae) mm² | 13 | Diameter | - |
| Core Type | RM | Core Factor (ΣI/A) mm1 | 1.7 |
