B65541W0000R030

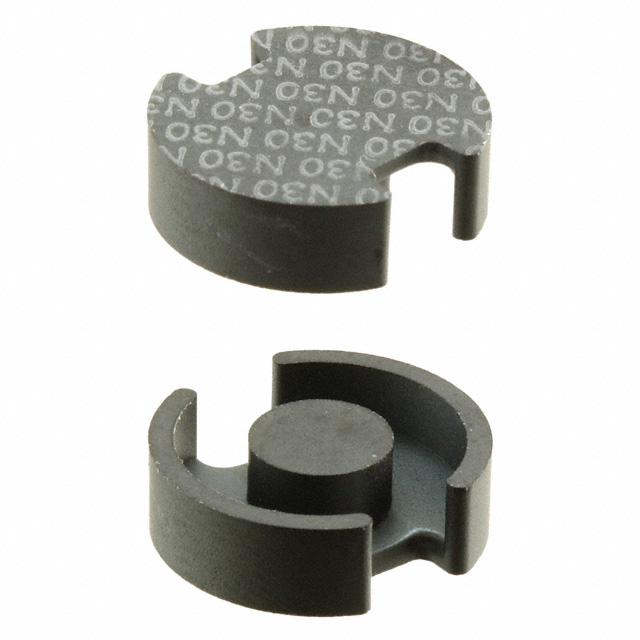

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B65541W0000R030 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy B65541W0000R030 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B65541W0000R030 |
|---|---|
| Manufacturer | EPCOS |
| Description | FERRITE CORE P 4.6UH N30 2PCS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.627 | $0.54 | $0.41 | $0.389 | $0.345 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.324 | $0.302 | $0.277 | $0.27 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B65541W0000R030 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | FERRITE CORE P 4.6UH N30 2PCS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79333 pcs | Data sheet | B6554x Series |
| Category | Magnetics - Transformer, Inductor Components | Width | - |
| Tolerance | -20%, +30% | Supplier Device Package | P 14 x 8 |
| Series | B65541 | Other Names | 495-5130 B65541W R 30 B65541WR30 B65541WR30-ND |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Minimum Core Cross Section (Amin) mm² | 23.6 |
| Material | N30 | Manufacturer Standard Lead Time | 47 Weeks |
| Length | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Initial Permeability (µi) | 4300 | Inductance Factor (Al) | 4.6µH |
| Height | 4.25mm | Gap | Ungapped |
| Finish | Uncoated | Effective Permeability (µe) | 2680 |
| Effective Magnetic Volume (Ve) mm³ | 603 | Effective Length (le) mm | 21 |
| Effective Area (Ae) mm² | 28.7 | Diameter | 14.30mm |
| Core Type | P (Pot Core) | Core Factor (ΣI/A) mm1 | 0.73 |
