Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290L0615X830

B64290L0615X830

B64290L0615X830

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290L0615X830 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290L0615X830
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 6.93UH N30
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 60550 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.737	$0.635	$0.483	$0.457	$0.407
	$0.381	$0.356	$0.327	$0.318

Product parameter
Data sheet

Product parameter

Part Number	B64290L0615X830	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 6.93UH N30	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60550 pcs	Data sheet	B64290L0615 Datasheet Ferrites, Accessories General Info
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±25%	Supplier Device Package	-
Series	B64290	Other Names	495-76701 B64290L 615X830 B64290L0615X830-ND B64290L615X830 B64290L615X830-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N30
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	4300
Inductance Factor (Al)	6.93µH	Height	16.20mm
Gap	Ungapped	Finish	Epoxy
Effective Magnetic Volume (Ve) mm³	4619	Effective Length (le) mm	60.07
Effective Area (Ae) mm²	76.89	Diameter	26.60mm
Core Type	Toroid	Core Factor (ΣI/A) mm1	0.78

Related products
Related news

Related products

B64290L0615X038 Image

Part#:~~B64290L0615X038~~
Manufacturers:~~EPCOS~~
Description:~~FERRITE CORE TOROID 16.1UH T38~~
In Stock:~~80759~~

~~$0.464/pcs~~RFQ

B64290L0615X087 Image

Part#:~~B64290L0615X087~~
Manufacturers:~~EPCOS~~
Description:~~FERRITE CORES~~
In Stock:~~100691~~

~~$0.366/pcs~~RFQ

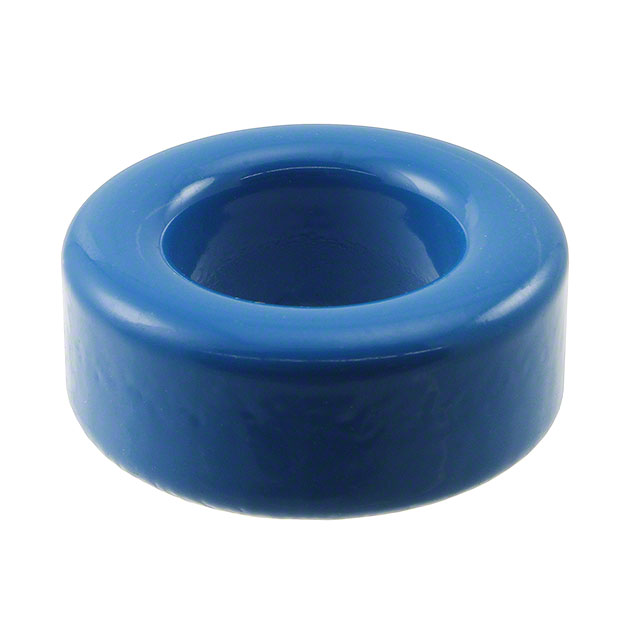

B64290L0618X065 Image
