Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290L0084X830

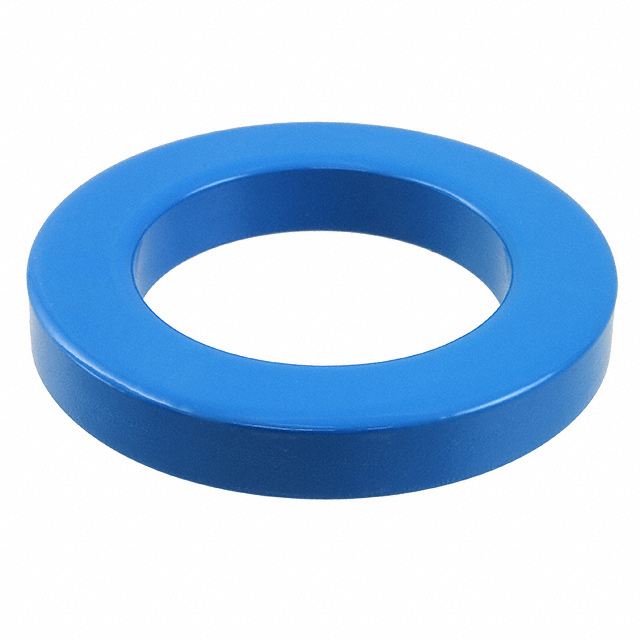

B64290L0084X830

B64290L0084X830

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290L0084X830 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290L0084X830
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 5.5UH N30
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	50 pcs	100 pcs	250 pcs
~~In Stock~~ 5140 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs
	$13.632	$12.198	$9.615
	$9.328	$8.18	$7.548

Product parameter
Data sheet

Product parameter

Part Number	B64290L0084X830	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 5.5UH N30	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5140 pcs	Data sheet	Ferrites, Accessories General Info B64290(A,L)0084 Datasheet
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±25%	Supplier Device Package	-
Series	B64290	Other Names	495-5094 B64290L 84X830 B64290L84X830 B64290L84X830-ND
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N30
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	4200
Inductance Factor (Al)	5.5µH	Height	16.50mm
Gap	Ungapped	Finish	Epoxy
Effective Magnetic Volume (Ve) mm³	68220	Effective Length (le) mm	255.3
Effective Area (Ae) mm²	267.2	Diameter	104.80mm
Core Type	Toroid	Core Factor (ΣI/A) mm1	0.96
