Home > Products > Magnetics - Transformer, Inductor Components > Ferrite Cores > B64290L0058X830

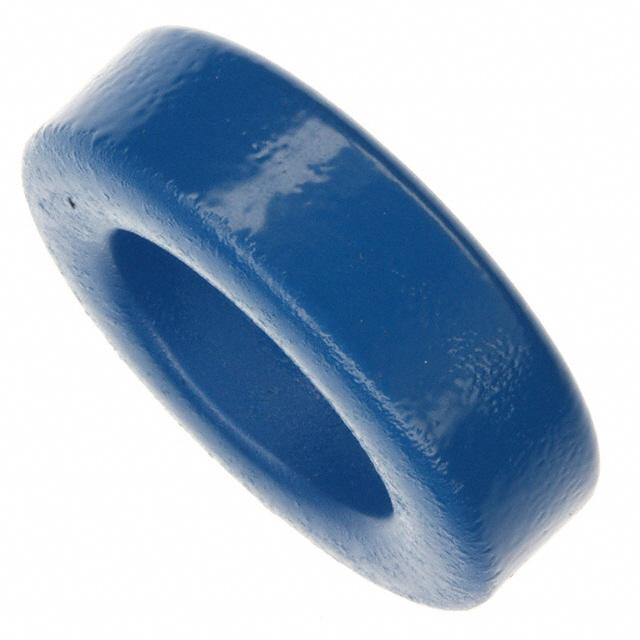

B64290L0058X830

B64290L0058X830

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B64290L0058X830 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	B64290L0058X830
Manufacturer	EPCOS
Description	FERRITE CORE TOROID 4.36UH N30
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	300 pcs	500 pcs	1000 pcs
~~In Stock~~ 71489 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs
	$1.039	$0.889	$0.667	$0.648
	$0.574	$0.537	$0.50	$0.463

Product parameter
Data sheet

Product parameter

Part Number	B64290L0058X830	Manufacturer	EPCOS
Description	FERRITE CORE TOROID 4.36UH N30	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	71489 pcs	Data sheet	B64290L0058 Datasheet Ferrites, Accessories General Info
Category	Magnetics - Transformer, Inductor Components	Width	-
Tolerance	±25%	Supplier Device Package	-
Series	B64290	Other Names	495-3858 B64290L 58X830 B64290L 58X830 B64290L58X830
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material	N30
Manufacturer Standard Lead Time	24 Weeks	Length	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Initial Permeability (µi)	4300
Inductance Factor (Al)	4.36µH	Height	11.10mm
Gap	Ungapped	Finish	Epoxy
Effective Magnetic Volume (Ve) mm³	5423	Effective Length (le) mm	82.06
Effective Area (Ae) mm²	66.08	Diameter	35.50mm
Core Type	Toroid	Core Factor (ΣI/A) mm1	1.24
