Home > Products > Circuit Protection > PTC Resettable Fuses > B59771B0120A070

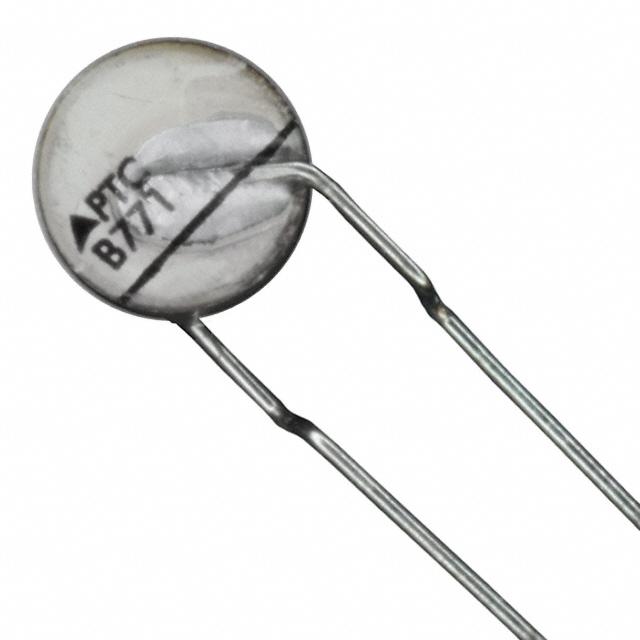

B59771B0120A070

B59771B0120A070

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B59771B0120A070 with confidence from Components-World.HK, 1 Year Warranty

Dowload B59771B0120A070 Details in PDF

Request a Quote

Part Number	B59771B0120A070
Manufacturer	EPCOS
Description	PTC RESET FUSE 420V RADIAL
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	100 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 89420 pcs
Reference Price (In US Dollars)	1 pcs	5 pcs	10 pcs	25 pcs	50 pcs
	$0.92	$0.87	$0.746	$0.597	$0.547
	$0.497	$0.435	$0.385	$0.36

Product parameter
Data sheet

Product parameter

Part Number	B59771B0120A070	Manufacturer	EPCOS
Description	PTC RESET FUSE 420V RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	89420 pcs	Data sheet	B750-774
Category	Circuit Protection	Voltage - Max	420V
Type	Ceramic	Time to Trip	3s
Thickness (Max)	-	Size / Dimension	0.335" Dia x 0.276" T (8.50mm x 7.00mm)
Series	-	Resistance - 25°C (Typ)	120 Ohms
Ratings	-	Packaging	Bulk
Package / Case	Radial, Disc	Other Names	495-3887 B59771B 120A 70 B59771B0120A070-ND B59771B120A70 B59771B120A70-ND
Operating Temperature	0°C ~ 60°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	22 Weeks
Lead Spacing	0.197" (5.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	0.197" (5.00mm)	Detailed Description	Ceramic PTC Resettable Fuse 420V Ih Through Hole Radial, Disc
Current - Trip (It)	97mA	Current - Max	1.4A
Approvals	UL
