B59770B0120A070

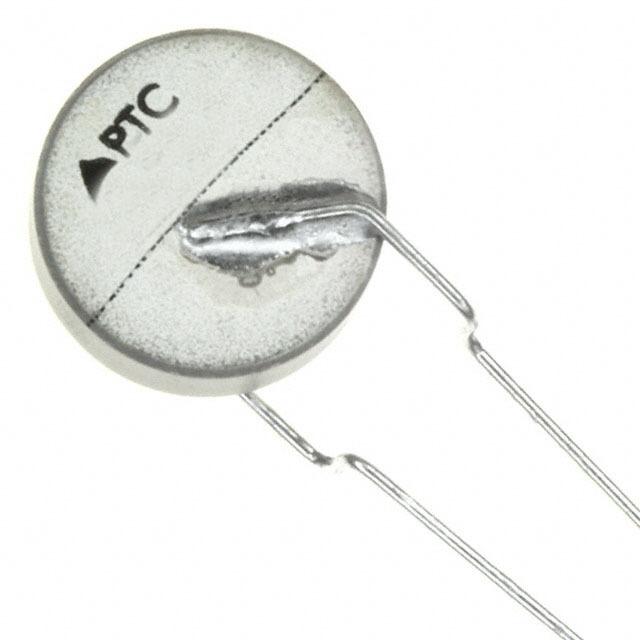

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy B59770B0120A070 with confidence from Components-World.HK, 1 Year Warranty
Dowload B59770B0120A070 Details in PDFSee Product Specifications for product details.
Buy B59770B0120A070 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | B59770B0120A070 |
|---|---|
| Manufacturer | EPCOS |
| Description | PTC RESET FUSE 420V RADIAL |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 5 pcs | 10 pcs | 25 pcs | 50 pcs |
|---|---|---|---|---|---|
| $0.921 | $0.871 | $0.746 | $0.597 | $0.547 | |
| 100 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.498 | $0.436 | $0.386 | $0.361 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | B59770B0120A070 | Manufacturer | EPCOS |
|---|---|---|---|
| Description | PTC RESET FUSE 420V RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 90922 pcs | Data sheet | B594xxC1130B070, B5975xC01xxA070 |
| Category | Circuit Protection | Voltage - Max | 420V |
| Type | Ceramic | Time to Trip | 4s |
| Thickness (Max) | - | Size / Dimension | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) |
| Series | - | Resistance - 25°C (Typ) | 70 Ohms |
| Ratings | - | Packaging | Bulk |
| Package / Case | Radial, Disc | Other Names | 495-3886 B59770B 120A 70 B59770B0120A070-ND B59770B120A70 B59770B120A70-ND B59770B120A70Z15 |
| Operating Temperature | 0°C ~ 60°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 22 Weeks |
| Lead Spacing | 0.197" (5.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.197" (5.00mm) | Detailed Description | Ceramic PTC Resettable Fuse 420V Ih Through Hole Radial, Disc |
| Current - Trip (It) | 127mA | Current - Max | 1.4A |
| Approvals | UL |
