690-024-294-031

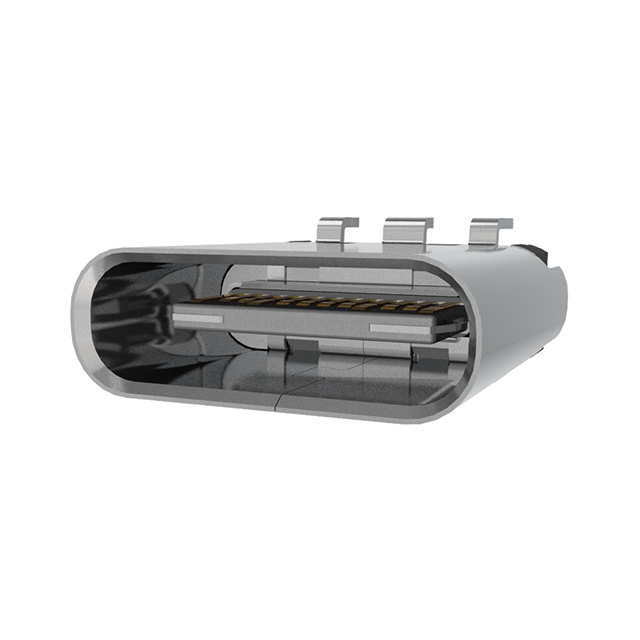

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 690-024-294-031 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 690-024-294-031 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 690-024-294-031 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | USB TYPE C 3.1 FEMALE VERTICAL M |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 690-024-294-031 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | USB TYPE C 3.1 FEMALE VERTICAL M | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4503 pcs | Data sheet | 690-024-294-031 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Termination | Solder | Specifications | USB 3.1 (USB 3.1 Gen 2, Superspeed+) |
| Shielding | - | Shell/Shielding Material | Steel, Stainless |
| Series | 690 | Packaging | Cut Tape (CT) |
| Other Names | 151-1598-1 | Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 | Number of Contacts | 24 |
| Mounting Type | Surface Mount | Mounting Feature | Vertical |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 10000 |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | Black | Ingress Protection | - |
| Gender | Receptacle | Features | Board Guide |
| Detailed Description | USB - C USB 3.1 (USB 3.1 Gen 2, Superspeed+) Receptacle Connector 24 Position Surface Mount | Current Rating | 1.25A, 5A |
| Contact Finish | Gold | Connector Type | USB - C |
