690-024-234-031

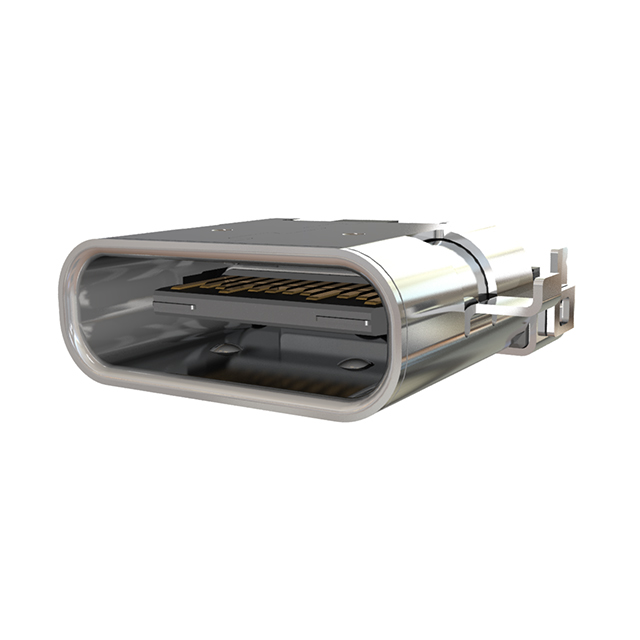

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 690-024-234-031 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 690-024-234-031 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 690-024-234-031 |
|---|---|
| Manufacturer | EDAC Inc. |
| Description | USB TYPE C 3.1 RT ANGLE FEMALE H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.215 | $1.165 | $1.067 | $1.019 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.97 | $0.849 | $0.825 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 690-024-234-031 | Manufacturer | EDAC Inc. |
|---|---|---|---|
| Description | USB TYPE C 3.1 RT ANGLE FEMALE H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42342 pcs | Data sheet | 690-024-234-031 Drawing |
| Category | Connectors, Interconnects | Voltage - Rated | - |
| Termination | Solder | Specifications | USB 3.1 (USB 3.1 Gen 2, Superspeed+) |
| Shielding | - | Shell/Shielding Material | Steel, Stainless |
| Series | 690 | Packaging | Original-Reel® |
| Other Names | 151-1596-6 | Operating Temperature | -40°C ~ 85°C |
| Number of Ports | 1 | Number of Contacts | 24 |
| Mounting Type | Board Edge, Cutout; Surface Mount; Through Hole, Right Angle | Mounting Feature | Horizontal |
| Mating Cycles | 10000 | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Color | - | Ingress Protection | - |
| Gender | Receptacle | Features | - |
| Detailed Description | USB - C USB 3.1 (USB 3.1 Gen 2, Superspeed+) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle | Current Rating | 1.25A, 5A |
| Contact Finish | Gold | Connector Type | USB - C |
