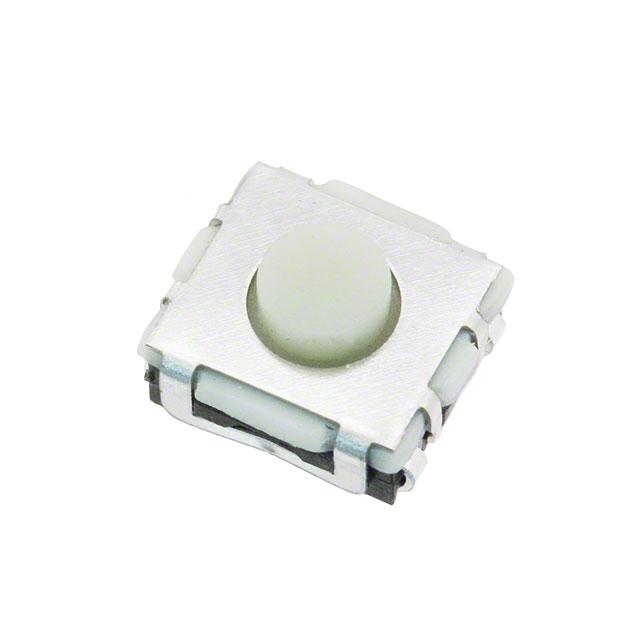

TL6700AF160QJ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL6700AF160QJ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL6700AF160QJ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL6700AF160QJ |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.318 | $0.308 | $0.29 | $0.256 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.232 | $0.221 | $0.215 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL6700AF160QJ | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95064 pcs | Data sheet | TL6700AF160QJ DrawingTL6700 Series Datasheet |
| Category | Switches | Termination Style | J Lead |
| Switch Travel | 0.35mm | Switch Function | Off-Mom |
| Series | TL6700 | Packaging | Cut Tape (CT) |
| Outline | 6.90mm x 6.20mm | Other Names | EG4381CT |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 160gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 500,000 Cycles | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | Process Sealed |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Standard |
| Actuator Orientation | Top Actuated | Actuator Material | Silicon Rubber |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 3.40mm |
