Home > Products > Switches > Tactile Switches > TL6330AF200Q

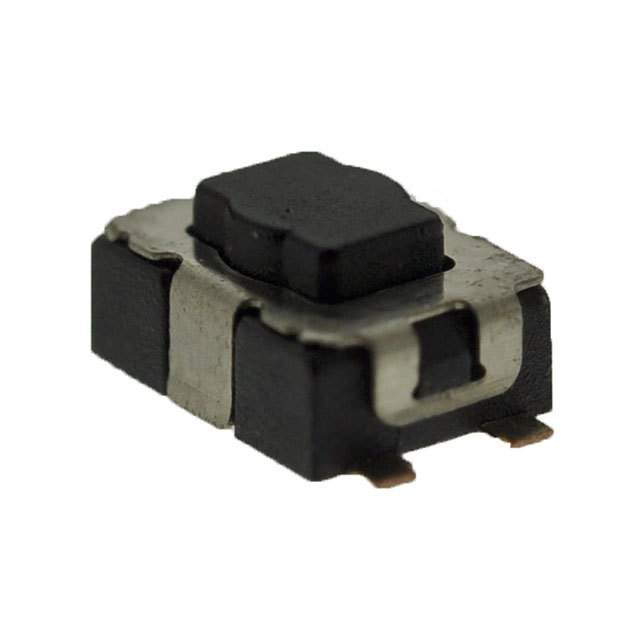

TL6330AF200Q

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL6330AF200Q with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TL6330AF200Q
Manufacturer	E-Switch
Description	SMT MINIATURE IP67 2.80MM X 4.60
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 121087 pcs
Reference Price (In US Dollars)	7000 pcs
Reference Price (In US Dollars)	$0.165

Product parameter
Data sheet

Product parameter

Part Number	TL6330AF200Q	Manufacturer	E-Switch
Description	SMT MINIATURE IP67 2.80MM X 4.60	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	121087 pcs	Data sheet	TL6330 Series Datasheet TL6330AF200Q Drawing
Category	Switches	Termination Style	SMD (SMT) Tab
Switch Travel	0.25mm	Switch Function	Off-Mom
Series	TL6330	Packaging	Tape & Reel (TR)
Outline	4.60mm x 2.80mm	Other Names	EG5546TR
Operating Temperature	-40°C ~ 85°C	Operating Force	200gf
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	200,000 Cycles	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount	Contact Rating @ Voltage	0.05A @ 32VDC
Circuit	SPST-NO	Actuator Type	Rectangular Button
Actuator Orientation	Top Actuated	Actuator Material	-
Actuator Length, Right Angle	-	Actuator Height off PCB, Vertical	1.90mm
