Home > Products > Switches > Tactile Switches > TL3300CF260Q

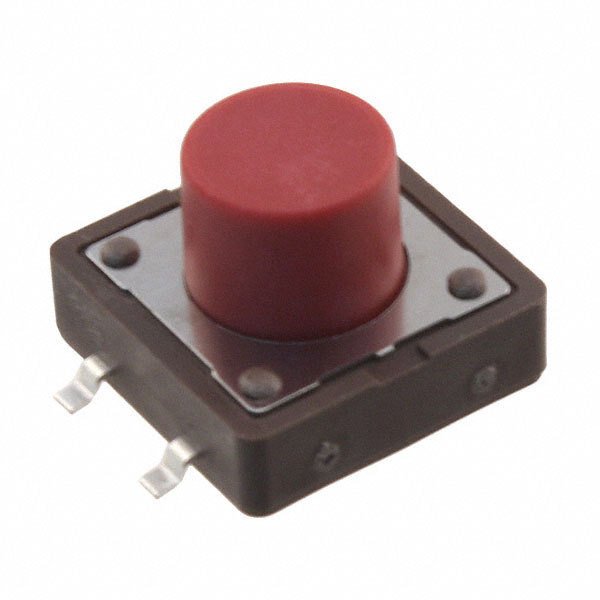

TL3300CF260Q

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL3300CF260Q with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TL3300CF260Q
Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 192499 pcs
Reference Price (In US Dollars)	400 pcs	800 pcs	1200 pcs	10000 pcs
Reference Price (In US Dollars)	$0.17	$0.162	$0.128	$0.119

Product parameter
Data sheet

Product parameter

Part Number	TL3300CF260Q	Manufacturer	E-Switch
Description	SWITCH TACTILE SPST-NO 0.05A 12V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	192499 pcs	Data sheet	TL3300 Series Datasheet TL3300CF260Q Drawing
Category	Switches	Termination Style	Gull Wing
Switch Travel	0.35mm	Switch Function	Off-Mom
Series	TL3300	Packaging	Tape & Reel (TR)
Outline	12.00mm x 12.00mm	Other Names	EG4905TR
Operating Temperature	-25°C ~ 70°C	Operating Force	260gf
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	100,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Detailed Description	Tactile Switch SPST-NO Top Actuated Surface Mount
Contact Rating @ Voltage	0.05A @ 12VDC	Circuit	SPST-NO
Actuator Type	Standard	Actuator Orientation	Top Actuated
Actuator Material	-	Actuator Length, Right Angle	-
Actuator Height off PCB, Vertical	8.50mm
