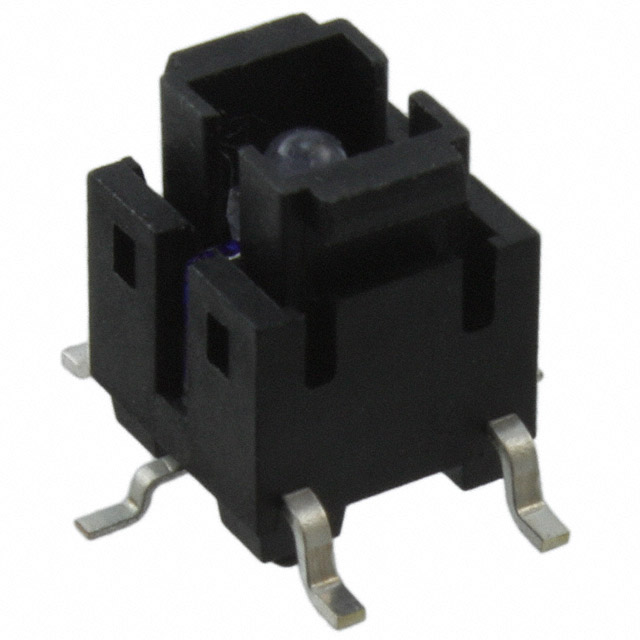

TL3240F100B
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL3240F100B with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL3240F100B with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL3240F100B |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.003 | $0.964 | $0.887 | $0.771 | $0.733 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | TL3240F100B | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50837 pcs | Data sheet | TL3240F100B DrawingTL3240 Series Datasheet |
| Category | Switches | Termination Style | Gull Wing |
| Switch Travel | 0.20mm | Switch Function | Off-Mom |
| Series | TL3240 | Packaging | Cut Tape (CT) |
| Outline | 6.10mm x 6.10mm | Other Names | EG5002CT |
| Operating Temperature | -25°C ~ 70°C | Operating Force | 100gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Mechanical Life | 200,000 Cycles | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | 3.2 VDC | Illumination Type, Color | LED, Blue |
| Illumination | Illuminated | Features | Board Guide |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Plunger for Cap |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 7.80mm |
