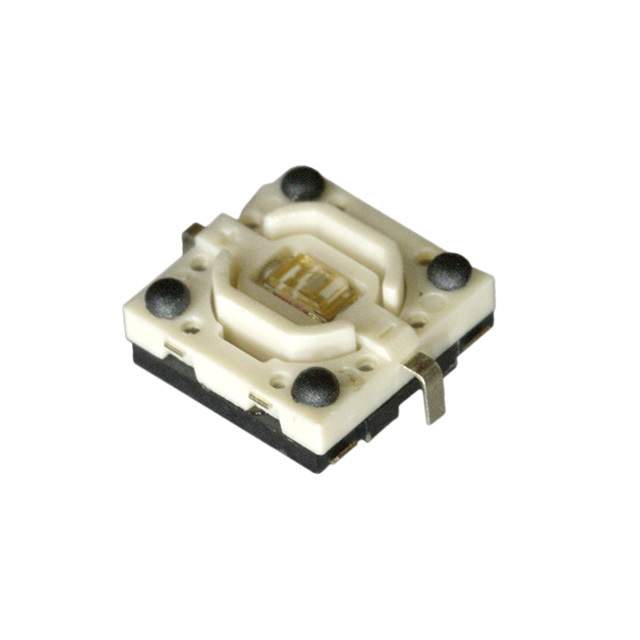

TL3215AF160BQ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL3215AF160BQ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL3215AF160BQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL3215AF160BQ |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.704 | $0.678 | $0.624 | $0.542 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.515 | $0.502 | $0.488 | $0.38 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL3215AF160BQ | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 87025 pcs | Data sheet | TL3215 Series Tact Switch |
| Category | Switches | Termination Style | SMD (SMT) Tab |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | TL3215 | Packaging | Original-Reel® |
| Outline | 4.90mm x 4.90mm | Other Names | EG5180DKR |
| Operating Temperature | -40°C ~ 85°C | Operating Force | 160gf |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| Mechanical Life | 1,000,000 Cycles | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | 3 VDC | Illumination Type, Color | LED, Blue |
| Illumination | Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Surface Mount | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Plunger for Cap |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 2.00mm |
