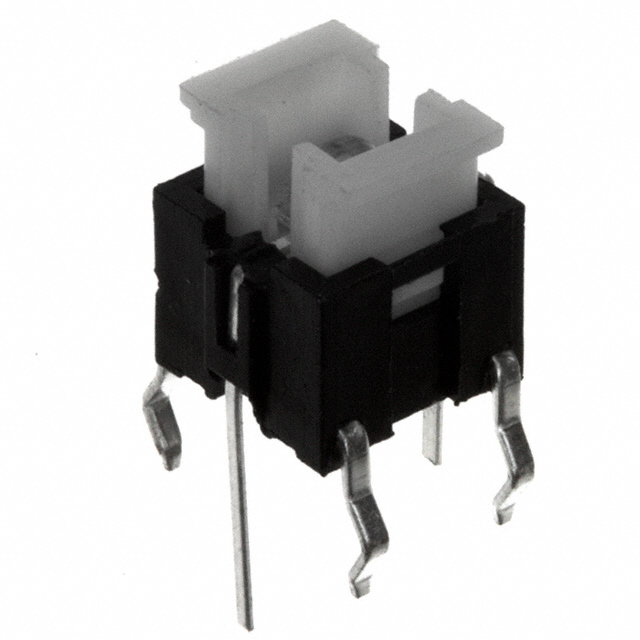

TL1240GQ
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL1240GQ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL1240GQ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL1240GQ |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.699 | $0.674 | $0.62 | $0.539 | $0.512 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.498 | $0.485 | $0.377 | $0.35 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL1240GQ | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 57026 pcs | Data sheet | TL1240GQ DrawingTL1240 Series Datasheet |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | TL1240 | Packaging | Bulk |
| Outline | 6.00mm x 6.00mm | Other Names | EG4611 TL1240GQ-ND TL1240GRNF160Q TL1240GRNF160Q-ND |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 160gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | 2.8 VDC | Illumination Type, Color | LED, Green |
| Illumination | Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Plunger for Cap |
| Actuator Orientation | Top Actuated | Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 7.20mm |
