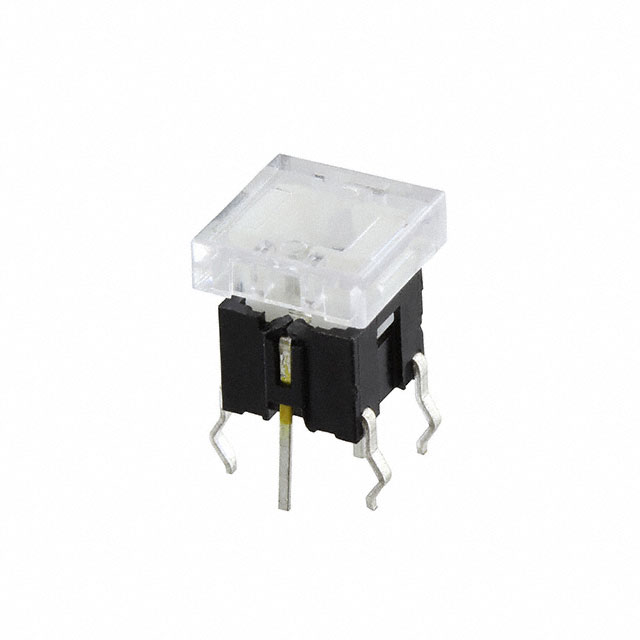

TL1240BQ1JCLR
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL1240BQ1JCLR with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL1240BQ1JCLR with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL1240BQ1JCLR |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.615 | $1.555 | $1.43 | $1.244 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.181 | $1.15 | $1.119 | $0.871 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL1240BQ1JCLR | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 35002 pcs | Data sheet | TL1240BQ1JCLR DrawingTL1240 Series Datasheet |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.25mm | Switch Function | Off-Mom |
| Series | TL1240 | Packaging | Bulk |
| Outline | 6.00mm x 6.00mm | Other Names | EG5457 TL1240BQ1JCLR-ND |
| Operating Temperature | -20°C ~ 70°C | Operating Force | 160gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 100,000 Cycles | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | 4.2 VDC | Illumination Type, Color | LED, Blue |
| Illumination | Illuminated | Features | - |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Square Button |
| Actuator Orientation | Top Actuated | Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 8.20mm |
