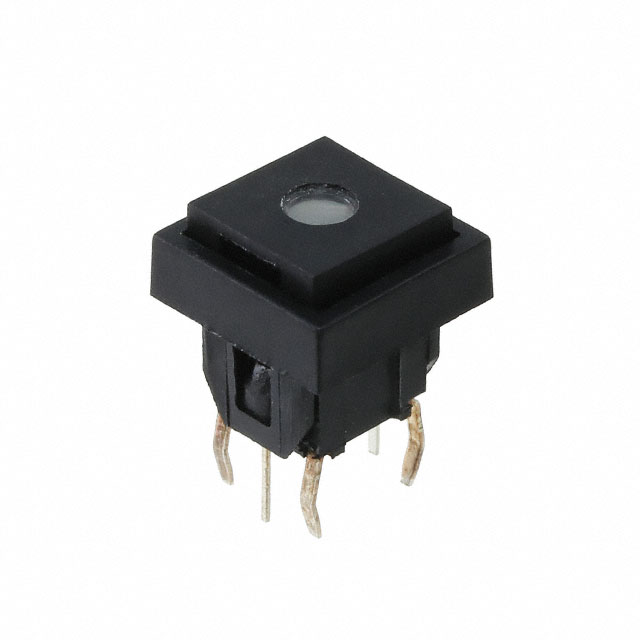

TL1220S1BBBRN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL1220S1BBBRN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL1220S1BBBRN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL1220S1BBBRN |
|---|---|
| Manufacturer | E-Switch |
| Description | SWITCH TACTILE SPST-NO 0.05A 12V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.015 | $0.976 | $0.898 | $0.781 | $0.742 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.722 | $0.703 | $0.547 | $0.508 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL1220S1BBBRN | Manufacturer | E-Switch |
|---|---|---|---|
| Description | SWITCH TACTILE SPST-NO 0.05A 12V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61145 pcs | Data sheet | TL1220 Series DatasheetTL1220S1BBBRN Drawing |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.20mm | Switch Function | Off-Mom |
| Series | TL1220 | Packaging | Tray |
| Outline | 7.60mm x 6.00mm | Other Names | EG5456 TL1220S1BBBRN-ND |
| Operating Temperature | -40°C ~ 85°C | Operating Force | 180gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 500,000 Cycles | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | 2.3 VDC | Illumination Type, Color | LED, Red |
| Illumination | Illuminated | Features | Tactile Feedback |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Square Button |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 9.90mm |
