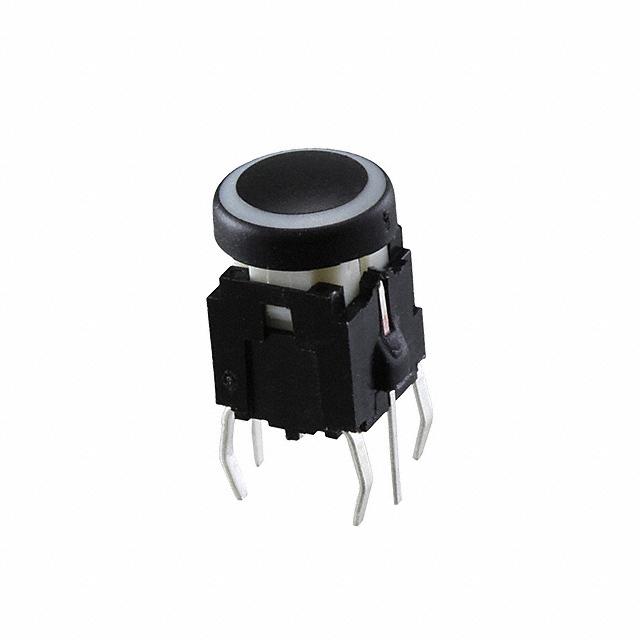

TL1220R1NNBGHALO
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL1220R1NNBGHALO with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy TL1220R1NNBGHALO with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | TL1220R1NNBGHALO |
|---|---|
| Manufacturer | E-Switch |
| Description | ILLUMINATED TACT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.351 | $1.30 | $1.196 | $1.04 | $0.988 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.962 | $0.936 | $0.728 | $0.676 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | TL1220R1NNBGHALO | Manufacturer | E-Switch |
|---|---|---|---|
| Description | ILLUMINATED TACT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 52951 pcs | Data sheet | TL1220R1NNBGHALO Drawing |
| Category | Switches | Termination Style | PC Pin |
| Switch Travel | 0.20mm | Switch Function | Off-Mom |
| Series | TL1220 | Packaging | Bulk |
| Outline | 7.60mm x 6.00mm | Other Names | EG5534 |
| Operating Temperature | -40°C ~ 85°C | Operating Force | 180gf |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 500,000 Cycles | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | 2.3 VDC | Illumination Type, Color | LED, Green |
| Illumination | Illuminated | Features | Tactile Feedback |
| Detailed Description | Tactile Switch SPST-NO Top Actuated Through Hole | Contact Rating @ Voltage | 0.05A @ 12VDC |
| Circuit | SPST-NO | Actuator Type | Round Button |
| Actuator Orientation | Top Actuated | Actuator Material | - |
| Actuator Length, Right Angle | - | Actuator Height off PCB, Vertical | 9.90mm |
