Home > Products > Switches > Toggle Switches > ST123D00

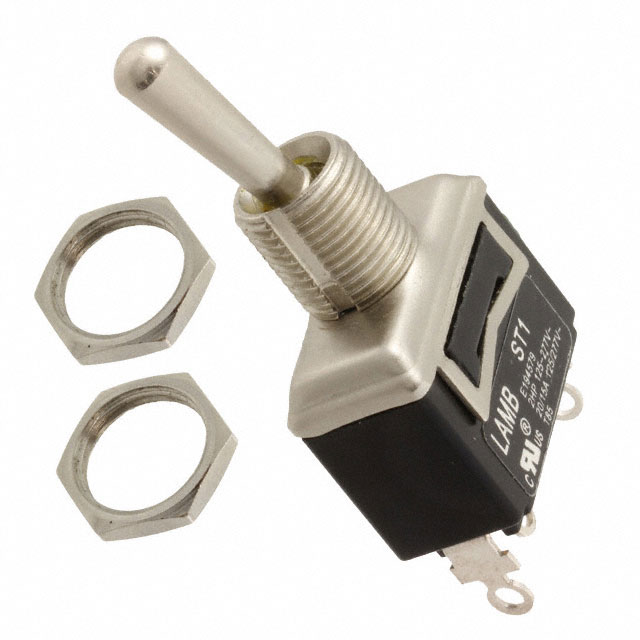

ST123D00

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ST123D00 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	ST123D00
Manufacturer	E-Switch
Description	SWITCH TOGGLE SPDT 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 23421 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$1.34

Product parameter
Data sheet

Product parameter

Part Number	ST123D00	Manufacturer	E-Switch
Description	SWITCH TOGGLE SPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23421 pcs	Data sheet	ST1 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-On
Series	ST1, LAMB	Panel Cutout Dimensions	Circular - 12.00mm Dia
Packaging	Bulk	Operating Temperature	-20°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	20A (AC)
Circuit	SPDT	Bushing Thread	M12 x 1
Actuator Type	Standard Round	Actuator Material	Brass, Nickel Plated
Actuator Length	19.50mm
