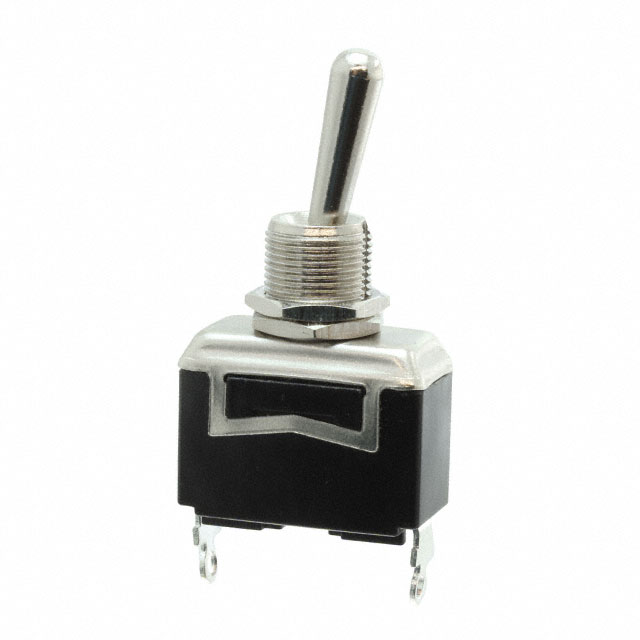

ST121D02
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ST121D02 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ST121D02 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ST121D02 |
|---|---|
| Manufacturer | E-Switch |
| Description | HIGH AMP TOGGLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.87 | $1.78 | $1.736 | $1.691 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.647 | $1.513 | $1.335 | $1.202 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ST121D02 | Manufacturer | E-Switch |
|---|---|---|---|
| Description | HIGH AMP TOGGLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30021 pcs | Data sheet | ST1 Series DatasheetST121D02 Drawing |
| Category | Switches | Voltage Rating - AC | 125V |
| Termination Style | Solder Lug | Switch Function | On-Off |
| Series | ST1, LAMB | Panel Cutout Dimensions | Circular - 12.00mm Dia |
| Packaging | Bulk | Other Names | EG5533 |
| Operating Temperature | -20°C ~ 85°C | Mounting Type | Panel Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Illumination Voltage (Nominal) | - | Illumination Type, Color | - |
| Illumination | Non-Illuminated | Features | - |
| Electrical Life | 6,000 Cycles | Detailed Description | Toggle Switch SPST Panel Mount |
| Current Rating | 20A (AC) | Circuit | SPST |
| Bushing Thread | 15/32-32 | Actuator Type | Standard Round |
| Actuator Material | Brass, Nickel Plated | Actuator Length | 19.50mm |
