Home > Products > Switches > Rocker Switches > RB246E1100-ACC-F04-1

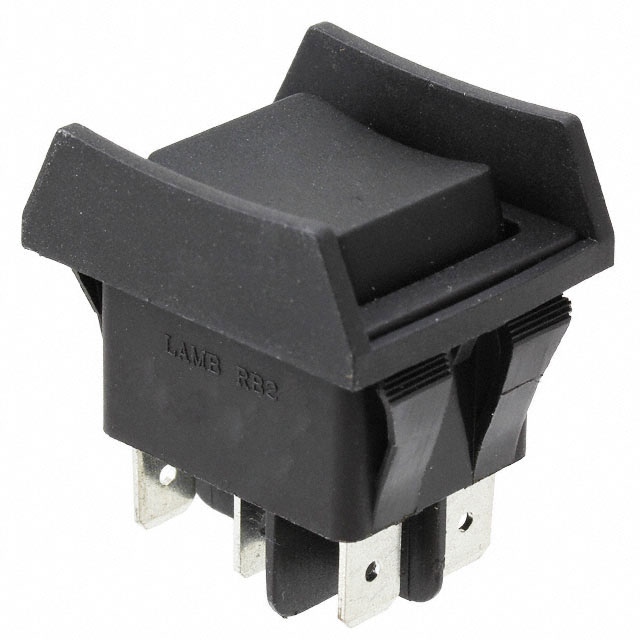

RB246E1100-ACC-F04-1

RB246E1100-ACC-F04-1

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RB246E1100-ACC-F04-1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RB246E1100-ACC-F04-1
Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 16A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 53741 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.603

Product parameter

Product parameter

Part Number	RB246E1100-ACC-F04-1	Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	53741 pcs	Data sheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off-On
Series	RB2, LAMB	Panel Cutout Dimensions	Rectangular - 30.00mm x 22.00mm
Packaging	Bulk	Other Names	RB246E1100ACCF041
Operating Temperature	-20°C ~ 65°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Guard	Electrical Life	10,000 Cycles
Detailed Description	Rocker Switch DPDT 16A (AC) 125V Panel Mount, Snap-In	Current Rating	16A (AC)
Color - Actuator/Cap	Black	Circuit	DPDT
Actuator Type	Concave (Curved)	Actuator Marking	No Marking
