Home > Products > Switches > Rocker Switches > RB24KC1100

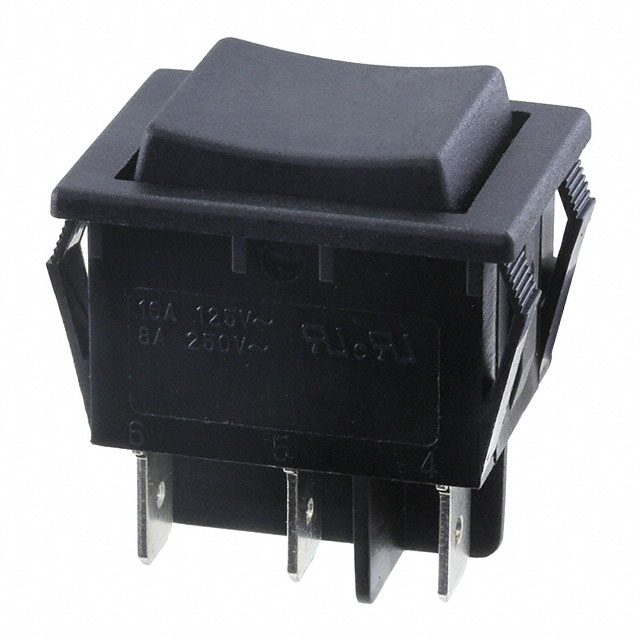

RB24KC1100

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RB24KC1100 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RB24KC1100
Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 16A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 61657 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.841	$0.803	$0.766	$0.73	$0.693
	$0.675	$0.639	$0.566	$0.547

Product parameter
Data sheet

Product parameter

Part Number	RB24KC1100	Manufacturer	E-Switch
Description	SWITCH ROCKER DPDT 16A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	61657 pcs	Data sheet	RB24KC1100 Drawing RB2 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	Mom-Off-Mom
Series	RB2, LAMB	Panel Cutout Dimensions	Rectangular - 30.00mm x 22.00mm
Packaging	Bulk	Other Names	EG5647 RB24KC1100-ND
Operating Temperature	-20°C ~ 65°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch DPDT 16A (AC) 125V Panel Mount, Snap-In
Current Rating	16A (AC)	Color - Actuator/Cap	Black
Circuit	DPDT	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
