Home > Products > Switches > Rocker Switches > RB242D142R

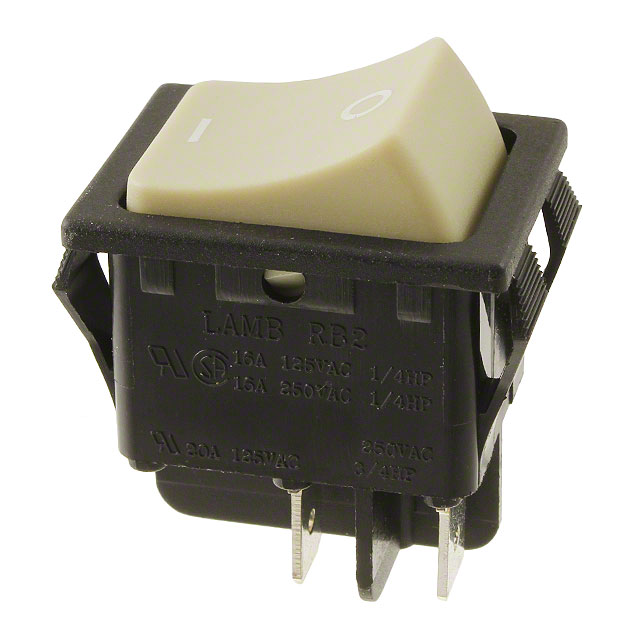

RB242D142R

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RB242D142R with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RB242D142R
Manufacturer	E-Switch
Description	SWITCH ROCKER DPST 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 71259 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.729	$0.698	$0.666	$0.635	$0.603
	$0.587	$0.555	$0.492	$0.476

Product parameter

Product parameter

Part Number	RB242D142R	Manufacturer	E-Switch
Description	SWITCH ROCKER DPST 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	71259 pcs	Data sheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off
Series	RB2, LAMB	Panel Cutout Dimensions	Rectangular - 30.00mm x 22.00mm
Packaging	Bulk	Operating Temperature	-20°C ~ 65°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	10,000 Cycles
Detailed Description	Rocker Switch DPST 20A (AC) 125V Panel Mount, Snap-In	Current Rating	20A (AC)
Color - Actuator/Cap	Gray	Circuit	DPST
Actuator Type	Concave (Curved)	Actuator Marking	O I
