Home > Products > Switches > Rocker Switches > RB141D1000-114

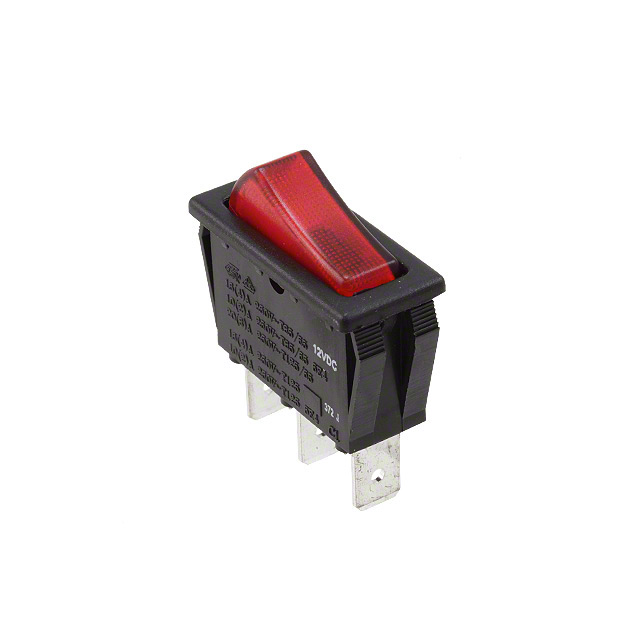

RB141D1000-114

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RB141D1000-114 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RB141D1000-114
Manufacturer	E-Switch
Description	SWITCH ROCKER SPST 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 66279 pcs
Reference Price (In US Dollars)	3000 pcs
Reference Price (In US Dollars)	$0.45

Product parameter
Data sheet

Product parameter

Part Number	RB141D1000-114	Manufacturer	E-Switch
Description	SWITCH ROCKER SPST 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66279 pcs	Data sheet	RB1 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off
Series	RB1, LAMB	Panel Cutout Dimensions	Rectangular - 30.00mm x 11.00mm
Packaging	Bulk	Other Names	RB141D1000114
Operating Temperature	-20°C ~ 65°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	12 VDC
Illumination Type, Color	Incandescent, Red	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch SPST 20A (AC) 125V Panel Mount, Snap-In
Current Rating	20A (AC)	Color - Actuator/Cap	Red
Circuit	SPST	Actuator Type	Concave (Curved) - Illuminated
Actuator Marking	No Marking
