Home > Products > Switches > Rocker Switches > RB141C1100-224

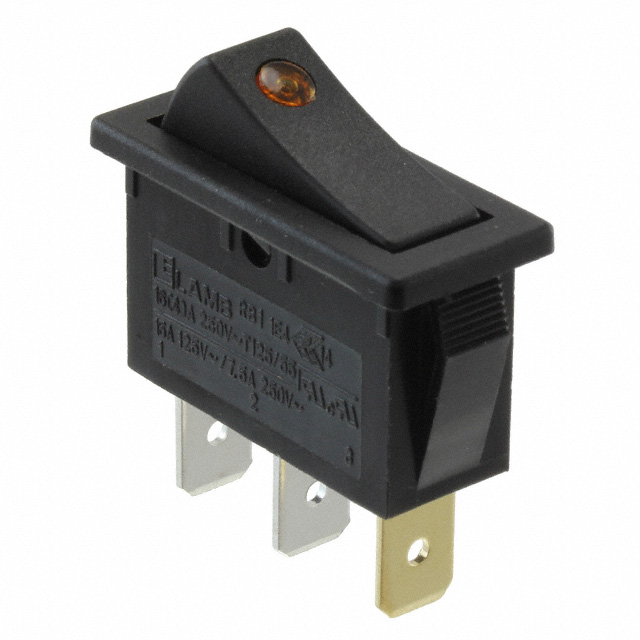

RB141C1100-224

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy RB141C1100-224 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	RB141C1100-224
Manufacturer	E-Switch
Description	SWITCH ROCKER SPST 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 81155 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.413	$0.396	$0.378	$0.36	$0.342
	$0.333	$0.315	$0.279	$0.27

Product parameter
Data sheet

Product parameter

Part Number	RB141C1100-224	Manufacturer	E-Switch
Description	SWITCH ROCKER SPST 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	81155 pcs	Data sheet	RB1 Series Datasheet RB141C1100-224 Drawing
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-Off
Series	RB1, LAMB	Panel Cutout Dimensions	Rectangular - 30.00mm x 11.00mm
Packaging	Bulk	Other Names	EG5635 RB141C1100-224-ND
Operating Temperature	-20°C ~ 65°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	12 VDC
Illumination Type, Color	Incandescent, Amber	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch SPST 15A (AC) 125V Panel Mount, Snap-In
Current Rating	15A (AC)	Color - Actuator/Cap	Black
Circuit	SPST	Actuator Type	Concave (Curved) - Illuminated
Actuator Marking	No Marking
