Home > Products > Switches > Rocker Switches > R4CBLKBLKEF0

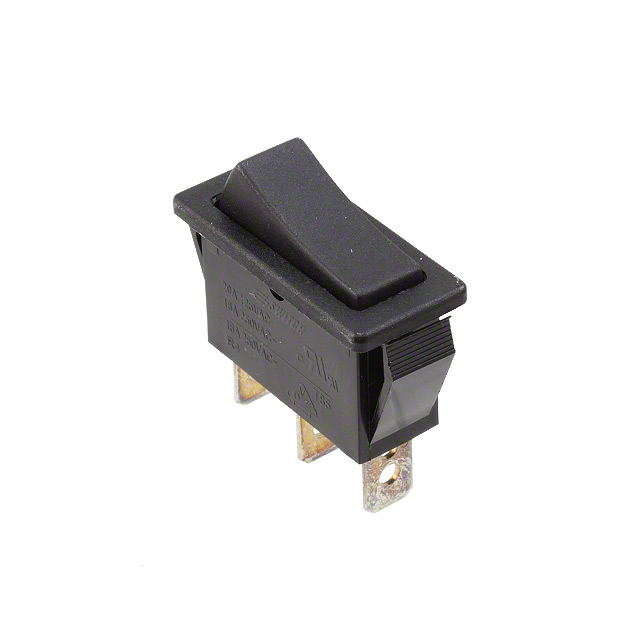

R4CBLKBLKEF0

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy R4CBLKBLKEF0 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	R4CBLKBLKEF0
Manufacturer	E-Switch
Description	SWITCH ROCKER SPDT 20A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 74775 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.462	$0.441	$0.421	$0.401	$0.381
	$0.371	$0.351	$0.311	$0.301

Product parameter
Data sheet

Product parameter

Part Number	R4CBLKBLKEF0	Manufacturer	E-Switch
Description	SWITCH ROCKER SPDT 20A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	74775 pcs	Data sheet	R4 Series Datasheet R4CBLKBLKEF0 Drawing
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.250" (6.3mm)	Switch Function	On-On
Series	R4	Panel Cutout Dimensions	Rectangular - 30.10mm x 11.10mm
Packaging	Bulk	Operating Temperature	-20°C ~ 55°C
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	30,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	-	Electrical Life	6,000 Cycles
Detailed Description	Rocker Switch SPDT 20A (AC) 125V Panel Mount, Snap-In	Current Rating	20A (AC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Concave (Curved)	Actuator Marking	No Marking
