Home > Products > Switches > Rocker Switches > R1966CBLKBLKEF

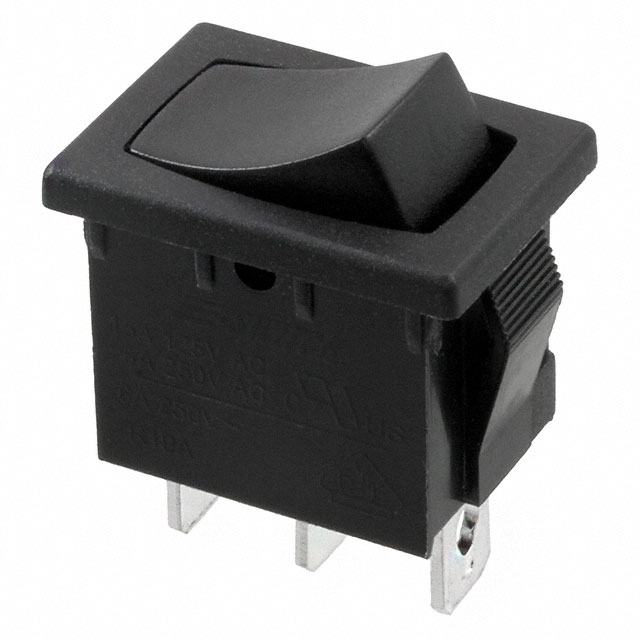

R1966CBLKBLKEF

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy R1966CBLKBLKEF with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	R1966CBLKBLKEF
Manufacturer	E-Switch
Description	SWITCH ROCKER SPDT 15A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 73361 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.626	$0.597	$0.57	$0.543	$0.516
	$0.502	$0.475	$0.421	$0.407

Product parameter
Data sheet

Product parameter

Part Number	R1966CBLKBLKEF	Manufacturer	E-Switch
Description	SWITCH ROCKER SPDT 15A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	73361 pcs	Data sheet	R1966CBLKBLKEF Drawing R1966 Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Quick Connect - 0.187" (4.7mm)	Switch Function	On-On
Series	R1966	Panel Cutout Dimensions	Rectangular - 19.40mm x 13.00mm
Packaging	Bulk	Other Names	EG5558 R1966CBLKBLKEF-ND
Operating Temperature	-30°C ~ 65°C	Mounting Type	Panel Mount, Snap-In
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	30,000 Cycles
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	10,000 Cycles	Detailed Description	Rocker Switch SPDT 15A (AC) 125V Panel Mount, Snap-In
Current Rating	15A (AC)	Color - Actuator/Cap	Black
Circuit	SPDT	Actuator Type	Concave (Curved)
Actuator Marking	No Marking
