Home > Products > Switches > Toggle Switches > 100DP3T8B13M1QEH

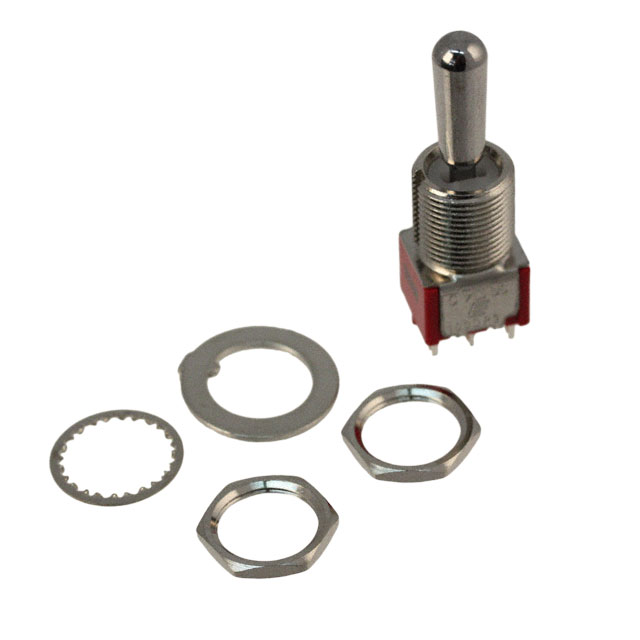

100DP3T8B13M1QEH

100DP3T8B13M1QEH

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100DP3T8B13M1QEH with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	100DP3T8B13M1QEH
Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 5A 120V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 23000 pcs
Reference Price (In US Dollars)	200 pcs
Reference Price (In US Dollars)	$1.391

Product parameter
Data sheet

Product parameter

Part Number	100DP3T8B13M1QEH	Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23000 pcs	Data sheet	100 Series Datasheet 100DP3T8B13M1QEH Drawing
Category	Switches	Voltage Rating - DC	28V
Voltage Rating - AC	120V	Termination Style	Solder Lug
Switch Function	On-Off-On	Series	100
Panel Cutout Dimensions	Circular - 11.91mm Dia	Packaging	Bulk
Other Names	100DP3T8B13M1QE EG2418 T102311	Operating Temperature	-30°C ~ 85°C
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	40,000 Cycles
Detailed Description	Toggle Switch DPDT Panel Mount	Current Rating	5A (AC/DC)
Circuit	DPDT	Bushing Thread	15/32-32
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	18.00mm
