Home > Products > Switches > Toggle Switches > 100DP3T6B12VS5RE

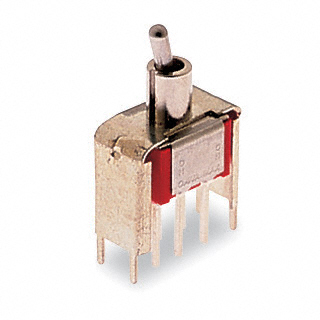

100DP3T6B12VS5RE

100DP3T6B12VS5RE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100DP3T6B12VS5RE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	100DP3T6B12VS5RE
Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 0.4VA 20V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 17611 pcs
Reference Price (In US Dollars)	200 pcs
Reference Price (In US Dollars)	$1.736

Product parameter
Data sheet

Product parameter

Part Number	100DP3T6B12VS5RE	Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 0.4VA 20V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17611 pcs	Data sheet	100 Series Datasheet 100DP3T6B12VS5RE Drawing
Category	Switches	Voltage Rating - DC	20V
Voltage Rating - AC	20V	Termination Style	PC Pin
Switch Function	On-Off-On	Series	100
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	40,000 Cycles	Detailed Description	Toggle Switch DPDT Through Hole
Current Rating	0.4VA (AC/DC)	Circuit	DPDT
Bushing Thread	Unthreaded	Actuator Type	Flat Anti-Rotation
Actuator Material	Brass, Chrome Plated	Actuator Length	12.30mm
