Home > Products > Switches > Toggle Switches > 100DP1T2B4M6RE

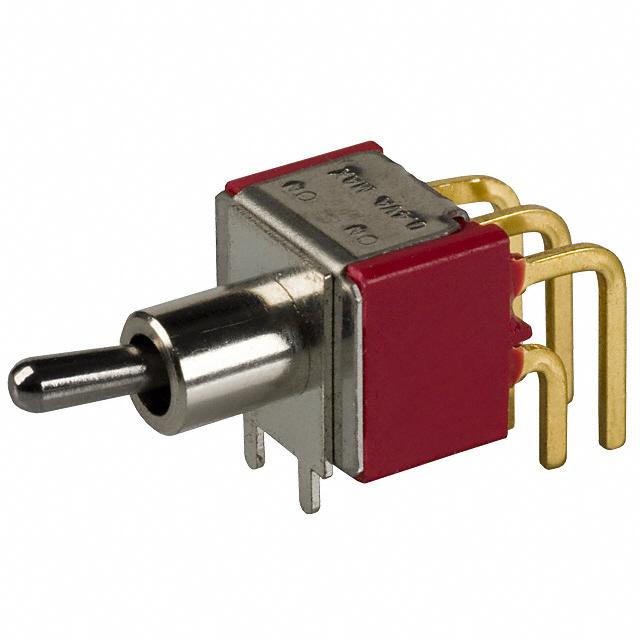

100DP1T2B4M6RE

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100DP1T2B4M6RE with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	100DP1T2B4M6RE
Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 0.4VA 20V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 26975 pcs
Reference Price (In US Dollars)	200 pcs
Reference Price (In US Dollars)	$1.282

Product parameter
Data sheet

Product parameter

Part Number	100DP1T2B4M6RE	Manufacturer	E-Switch
Description	SWITCH TOGGLE DPDT 0.4VA 20V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	26975 pcs	Data sheet	100DP1T2B4M6RE Drawing 100 Series Datasheet
Category	Switches	Voltage Rating - DC	20V
Voltage Rating - AC	20V	Termination Style	PC Pin
Switch Function	On-On	Series	100
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	EG2405 T121044	Operating Temperature	-30°C ~ 85°C
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	40,000 Cycles
Detailed Description	Toggle Switch DPDT Through Hole, Right Angle	Current Rating	0.4VA (AC/DC)
Circuit	DPDT	Bushing Thread	Unthreaded
Actuator Type	Standard Round	Actuator Material	Brass, Chrome Plated
Actuator Length	6.46mm
